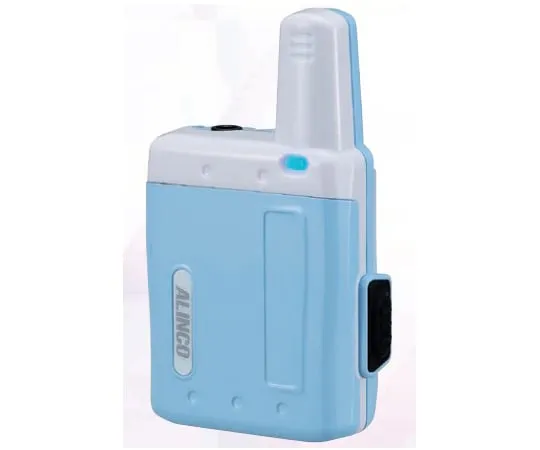

67-0478-10 Ultra-Small Specific Low Power Transceiver Lapeltok Aqua Blue DJ-PX5A
scannersbarcodereaders

67-0478-10 Ultra-Small Specific Low Power Transceiver Lapeltok Aqua Blue DJ-PX5A

model: 67-0478-10
brand: ALINCO INCORPORATED

Product Description

Product Model: 67-0478-10Product Brand: ALINCO INCORPOR […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 67-0478-10
Product Brand: ALINCO INCORPORATED

Features

  • This is a full-fledged compact transceiver that supports a total of 47 channels of alternate call and alternate call relay mode, and 50 tones of group talk.
  • Microphone built in, can be ***d only with earphones
  • This is like talking without a wireless device and using only an earphone/microphone! Compared to an external wireless earphone microphone, there is no need to charge the microphone, pair it, or delay the sound.
  • Width 41.6 mm x Height 52.6 mm x Thickness 17.2 mm (Excluding Protrusions, Antenna Length Approx. 22 mm)
  • Even including the battery and clip, it weighs just 50 grams! More than 40% reduction in volume and more than 20% reduction in weight compared to DJ-PX3.
  • The case is made of sturdy polycarbonate.
  • Not dustproof or waterproof.
  • Although the battery is dedicated to the built-in Li-Ion (700mAh), which can be recharged continuously, it can operate for about 25 hours on a single charge.
  • Our company measurement, dry battery and spare battery pack cannot be ***d at 6/6/48 sec. The internal battery can be replaced at your our company dealer or service center.
  • There's one microphone on the top and one on the bottom.
  • You can also mount it with the antenna facing up by switching with the internal setting switch.
  • The microphone is set with the antenna facing down.
  • Uses a 3.5 mm diameter earphone plug that is easy to *** for general-purpose earphones.
  • However, most of the cords of earphones on the market are long, and sometimes they get in the way. The earphone cord of the genuine EME-66B/67B is shortened to approximately 50 cm.
  • "The!" when the squelch breaks Tail noise canceller to cut sound, earphone disconnection detection, call back to monitor your own voice with the earphone when s***ing, compander to reduce back noise in silence to be fri***ly to the ear, VOX, and low battery warning.
  • You can select channels and group talks, and turn various functions on and off using the setting switches as in the previous model.
  • The settings are explained clearly by voice guidance and LED color display.
  • The only external control buttons are the power switch and volume.
  • There is no risk of accidentally changing the settings.
  • Caution
  • Compander and tail noise cancellation can only be ***d between compatible models.
  • In particular, please **** that mixing and using a compander with a non-compatible model may result in poor sound quality and interference with communication.

Spec

  • Standard Accessories
  • Holder metal fitting for rotary clip and neck strap
  • Specifications
  • Frequency Range: 421~440 MHz Very Small Transceiver Frequency
  • Number of channels: alternate 20 channels, relay 27 channels
  • Modulation type: F3E (FM)
  • Communication mode: single and half duplex
  • Operating temperature range: -10°C to +50°C (Charging 0°C to +40°C)
  • Rated voltage: 3.7 VDC (battery only)
  • Current consumption: Transmission: Approx. 70 mA
  • Current consumption: Approx. 80 mA at reception and rated output, Approx. 20 mA at BS
  • Low frequency output: 50 mW (8 Ω)
  • Sensitivity: -14dμ or less (12dB SINAD)
  • External Dimensions (Excluding Protrusions): W41.6 x H52.6xD17.2mm Antenna Length: 22 mm
  • Weight (approx.): Including internal battery and clip/50.0 g
  • Transmit power: 10 mW
  • Approximate usage time: 25 hours (BS on)
  • Standard charging time: Approx. 3 hours (using EDC- 207/208)
  • Standard communication distance: Approximately 100 m in urban area between PX5
  • You need earphones and a charger separately.
  • The microphone is built in the body, so you need to bring the body of the radio device close to the mouth.
