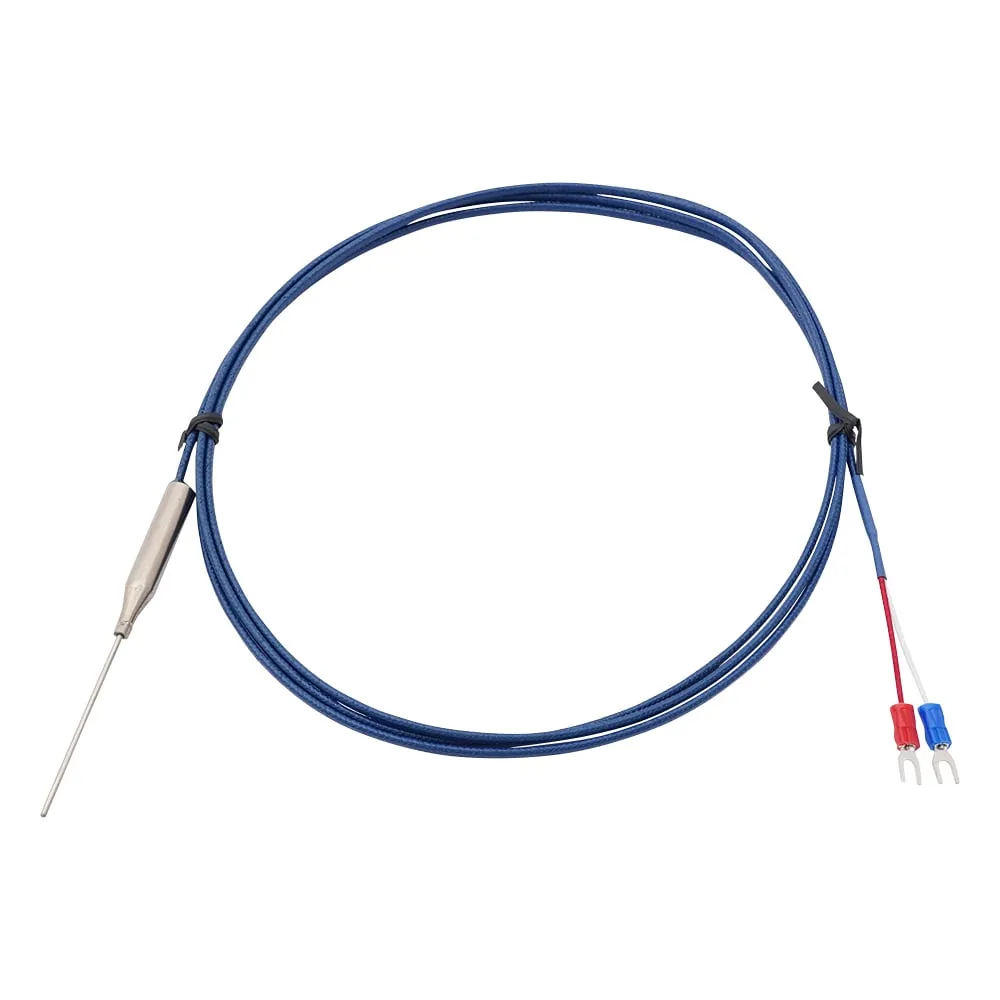

3-7418-01-56 K Thermocouple (sheath) with English Calibration Certificate KTO-1650M3
Product Description
Product Model: 3-7418-01-56Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-7418-01-56
Product Brand: AS ONE Corporation
Features
- M3Y terminal type
- * Use in an environment where the temperature at the base of the sheath is 100°C or less.
Spec
- Temperature range: -50 to + 650 degrees C
- Materials: sheath/stainless steel (SUS 316), sleeve/stainless steel (SUS 304), lead wire coating/glass wool
- Lead wire length: 2 m
- Lead wire terminal: M3Y terminal (outer diameter/5.9 mm, inner diameter/3.3 mm)
- Sheath: diameter 1.6 mm x length 50 mm
