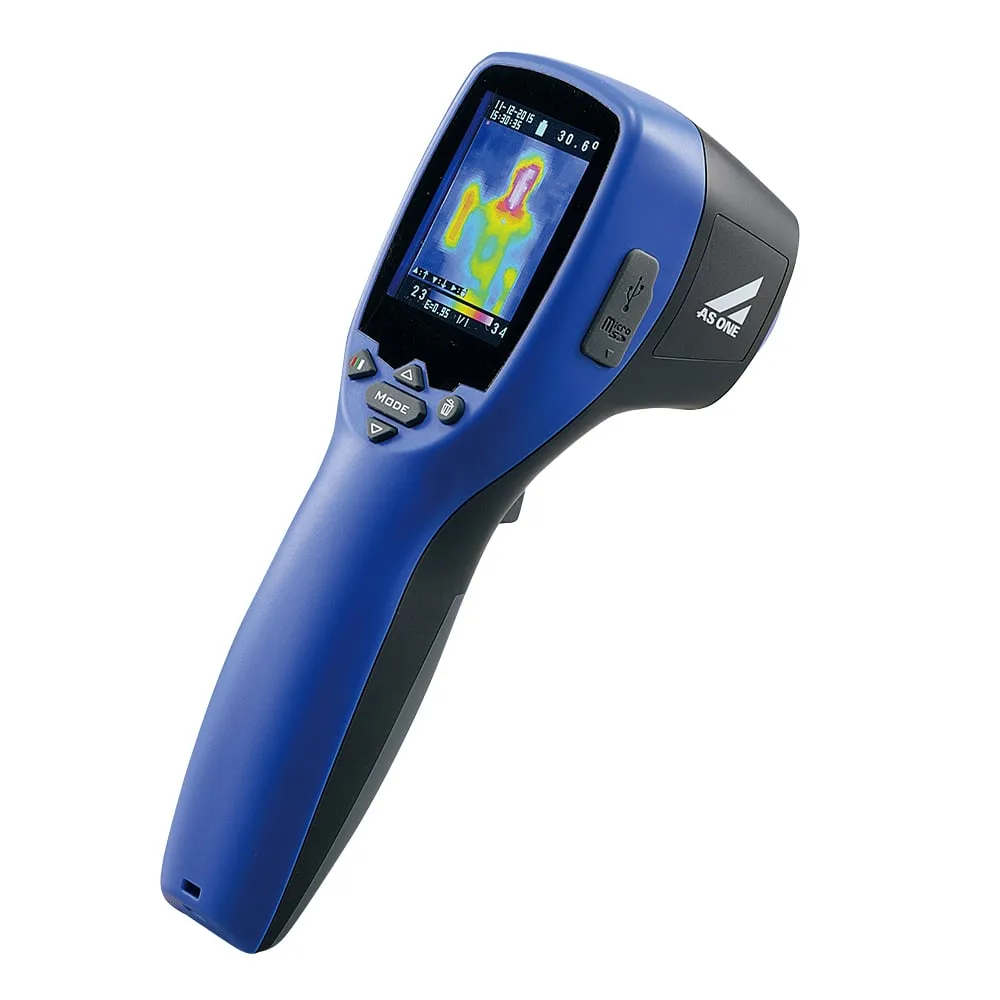

3-7406-01 Thermography TIM-03
Product Description
Product Model: 3-7406-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 3-7406-01
Product Brand: AS ONE Corporation
Features
- This device shows max. temperature, min. temperature and temperature in screen center.
- By using dedicated software, possible to check temperature for each pixel.
- Device allows you to set alarm which sounds when lower or upper temperature limit is exceeded.
Spec
- Measurement range: -20 - 250℃
- Accuracy: +/- 2℃ or +/- 2%
- View angle: 40° x 40°
- Minimum measurement distance: 30mm
- Waterproof dust control protection grade: IP54
- Preservation format: Image/BMP, Video/BDS/AVI (when connected to PC)/BIN (when body alone is ***d)
- Number of images that can be stored: 25,000 (when 8GB microSD card is ***d)
- Interface: USB Mini-B
- Supported OS: Windows(R)XP/7/8/10
- Power supply: AA battery x 4 (included for test)
- Size: 74 x 95 x 234mm
- Weight: Approximately 400g (including cell)
