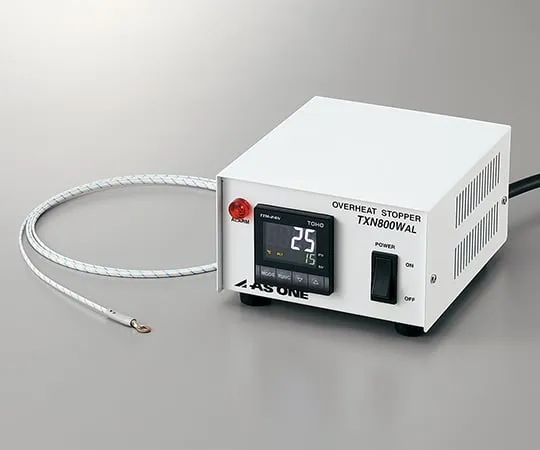

3-6824-01-56　Temperature Excess Temperature Rise Preventer (with output for alert) with English Calibration Certificate　TXN800WAL

model: 3-6824-01-56

brand: AS ONE Corporation

category: toner

Product Description

Product Model: 3-6824-01-56Product Brand: AS ONE Corpor […]

18866622123

WeChat ID: 18866622123

Product Model: 3-6824-01-56

Product Brand: AS ONE Corporation

Specifications: 130 x 160 x 84 mm
Power supply: 100 VAC 50/60 Hz
Capacity: AC 100 VmAX 15 A (includes alert output)
Output for alerts: 100 VmAX 1 A
Temperature control method: Main control ON/OFF
Output control method: Relay contact output
Safety features: 15 A f***
Power cord: About 1.8 m (3 P plug)
Weight: approximately 1.5 kg
Temperature display accuracy: +/- 2 degrees C or the indicated value +/- (0.3% + 1 digit), whichever is greater
Sensor Type: K Thermocouple
Setting temperature: -100 to + 1000 degrees C
Setting method: UP/DOWN keys
Connection terminal: control output/3 P outlet, alarm output/sensor input/M 3.5 Y terminal block
Accessories: K Thermocouple round terminal specification (180 degrees Celsius), Cable length: approx. 2 m
*We have a demo unit.
*The included K Thermocouple sensor is standard type. Prepare a sensor for high temperature separately.
Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
