Spec

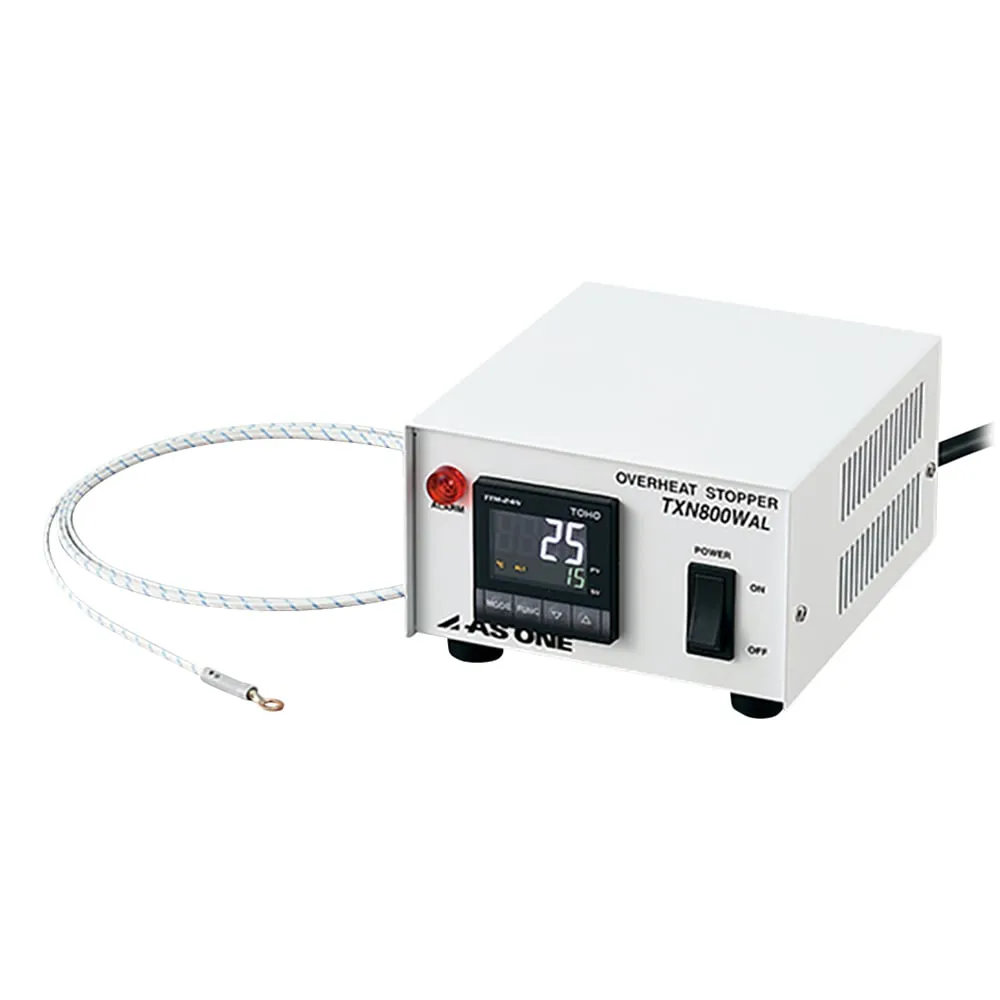

• Model number: TXN 800 WAL (main body)
• Specification: 130 x 160 x 84mm
• Power supply : AC100V 50/60Hz
• Connected capacity: AC100V MAX 15 A (Includes output for alerts)
• Alert output: 100 V MAX1A
• Temperature control method: Main control ON/OFF
• Output control method: relay contact output
• Safety function: 15 A f***
• Power cord : Approximately 1.8 m (3P plug)
• Weight: about 1.5kg
• Temperature display accuracy: ±2 ℃ or ±(0.3% + 1 digit), whichever is larger
• Sensor Type: K thermocouple
• Set temperature: 100 to + 1000 ℃
• Setting method: UP/DOWN key
• Connecting terminal: Control output/3P outlet, Alarm output/Sensor input/M3.5 Y terminal block
• Accessories: K class thermocouple round terminal specification (Suitable for 180 ℃), cable length: approx. 2m
• *We have a demo machine.
• *The attached K class thermocouple sensor is a standard type. Please prepare the high temperature sensor separately.
• Accessories: Calibration certificates
• *Products with calibration certificate is a service where equipment is calibrated and calibration certificate is issued at the time of shipment.
