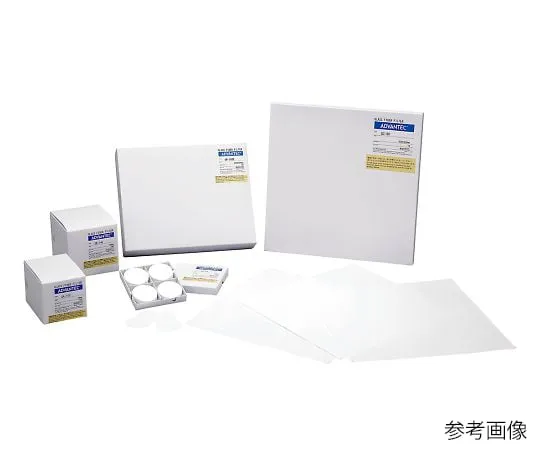

4-908-70 Glass Filter Paper GC-90 100 Pieces 36401047
Analyzer, Testing Equipment

4-908-70 Glass Filter Paper GC-90 100 Pieces 36401047

model: 4-908-70
brand: ADVANTEC

Product Description

Product Model: 4-908-70Product Brand: ADVANTEC Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 4-908-70
Product Brand: ADVANTEC

Features

  • Made from only very fine borosilicate glass fibers, it has a fast filtration rate, excellent sediment retention, and can be filtered quickly and with high efficiency.
  • It has been treated with organic binder (acrylic resin) for high strength and easy handling.

Spec

  • Product name: GC -90
  • Mass (g/m2): 100
  • Thickness (mm): 0.3
  • Filtration time (s): Filtration time of 20 mL of 20 ℃ particle-free water at a pressure of 39 kPa under a filter paper area of 100 * 9.6 cm2
  • Retention particle size (μm): 0.5 * particle size that can retain 90% or more of the 7 kinds of powder dispersion specified in JIS Z 8901 when filtered naturally
  • Pressure drop (kPa): 0.42 * Value at 5 cm/s ventilation speed
  • Collection efficiency (0.3 .mu.m DOP%): 99.99 * According to JIS Z 8901 (test powder and test particles), the collection efficiency when air containing dioctyl phthalate particles dispersed in 0.3 μm is filtered at a ventilation speed of 5 cm/s.
  • Organic binders: Yes
  • Maximum operating temperature (℃): 120
  • Application: Aerosol collection such as fine particles and oil mist in the atmosphere
  • Size (mm): φ47
  • Shape: circles
  • Quantity : 1 box (100 pieces)
  • RoHS3 (EU)2015/863 Certificates can be issued
