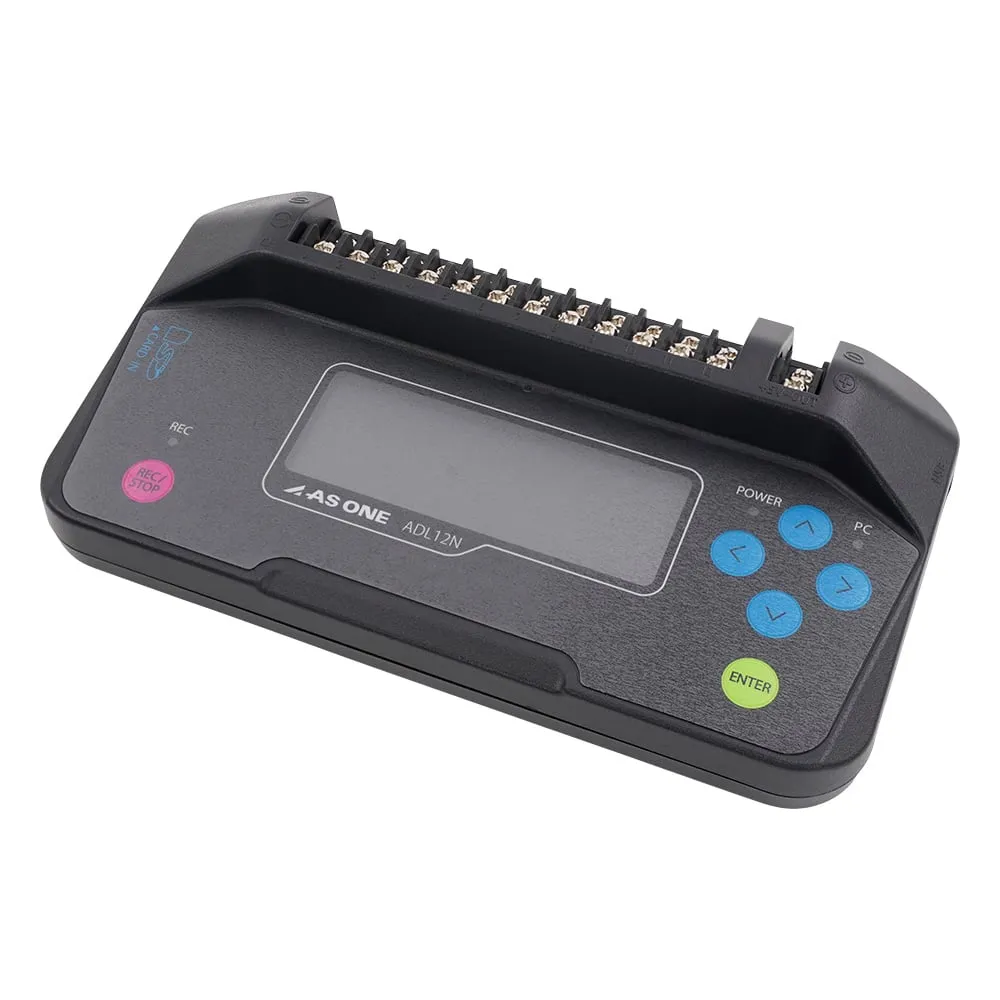

3-6823-31-20 12 CH Data Logger Calibration Certaificate ADL12N
Product Description
Product Model: 3-6823-31-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6823-31-20
Product Brand: AS ONE Corporation
Features
- It is a multi-logger capable of measuring thermocouples or DC voltages up to 12CH (humidity measurement is limited to 1CH using +5 V and 12CH ports).
- Graph display and list display can be measured by connecting to a PC with a USB cable (PC requires installation of an application downloaded from a specified URL).
- The recorded data is recorded in CSV format on either the SD card or the PC side.
- Recording can be moved to the PC side via USB cable (not during recording).
- With USB power supply, power can be supplied from various USB ports/portable batteries as well as the included AC adapter.
- Further evolution! It is now SDHC compatible.
Spec
- Size (mm): 167 x 91 x 35.8
- Specifications (Body)
- Thermocouple measurement: B, R, S, N, K, E, J, T (choose one)
- Measuring temperature range: -200 to + 1370 degrees C (when using a K thermocouple)
- Temperature measurement accuracy: +/- 0.05% of rdg + 1.0 degrees C (K: -100 to + 1370 degrees Cat 25 degrees C)
- DC Voltage Measurement: 100, 500 mV, 1, 5, 10, 50 V
- DC voltage measurement accuracy: +/- 0.1% of F.S.
- AC100V
- Humidity reading: 0 ~ 100% RH
- Humidity measurement accuracy: +/- 5% RH (TYP) (10 ~ 95% RH at 23 degrees C)
- Input channels: Analog/12 CH, + 5 V-OUT/1 CH for humidity measurement
- Input terminal shape: Screw type terminal M3/* M 3.5 (outer dimension 6.2 mm or less/inner diameter 3.2 mm or more)
- Sampling period: 5, 10, 30, 60 sec, 5, 10, 30, 60 min
- PC I/F: USB 2.0 (Full Speed) Mini B Type
- Card slot: 1 slot, SDHC compatible, available memory: 64 GB to 32 GB (no SDXC)
- Memory: PC storage via SD card application
- Recording format: Save in one file from the start of CSV recording
- Records: 5 million (for 2 GB)
- Accessories: simplified instruction manual, AC adapter, USB cable approx. 1M (for power supply and communication)
- Specifications (Applications)
- Operating System: Windows ® 8/8. 1/10 (32/64 bit)
- Functions: Real-time measurement on application, recording start/stop, data storage, device settings, reading and displaying SD card data
- Display method: Graph display (with overlay function), list display, maximum/minimum/average/comparison value display function of measured data
- *Thermoelectric equivalent connecting wire is not included in the body. Prepare according to your int***ed ***.
- *We have rental machines available.
- < a href="https://axel.as-1.co.jp/images/pdf/pb/3-6823-31/adl12_controller_v121.zip" rel="noopener nofollow" target="_blank" > Download the dedicated application (v 121) here < /a >
- Operating System: Windows ® 7/8/8.1/10 (32/64 bit)
- < a href="https://axel.as-1.co.jp/images/pdf/pb/3-6823-01/ADL12_Driver_V1.0.zip"rel="nofollow" > If you need a driver for your USB connection, click here < /a >
- *Express proofreading is a service that delivers products with proof of proofreading at a faster delivery time than usual.
