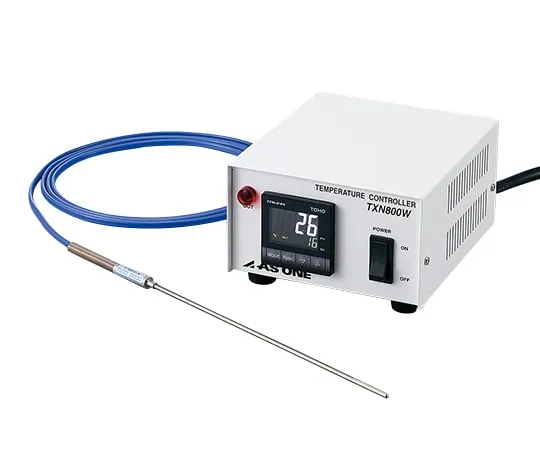

3-6768-01-56 Digital Temperature Controller (with output for alert) with English Calibration Certificate TXN800W
Product Description
Product Model: 3-6768-01-56Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6768-01-56
Product Brand: AS ONE Corporation
Features
- An output terminal for alerts has been provided for general temperature regulators.
- The alert output is 100 V/1 A, and various combinations such as warning light and buzzer are possible.
- Temperature control and alarm control can be set, and the alarm output is turned on when the alarm setting is reached.
- The temperature control method is PID control, which enables high precision temperature control.
- In the double component of the SSR and the relay, if the SSR fails, the relay circuit interrupts the continuous energization.
- The OUT lamp lets you check the current output status at a glance.
Spec
- 130×160×84mm
- Power supply: 100 VAC 50/60 Hz
- Capacity: AC 100 VmAX 15 A (includes alert output)
- Temperature control system: PID control (with auto tuning)
- Output control method: Voltage output by SSR
- Safety features: SSR and relay double components, 15 A f***
- Power cord: About 1.8 m (3 P plug)
- Weight: approximately 1.5 kg
- Temperature display accuracy: +/- 2 degrees C or the indicated value +/- (0.3% + 1 digit), whichever is greater
- Sensor Type: K Thermocouple
- Setting temperature: -100 to + 1000 degrees C
- Setting method: UP/DOWN keys
- Timer Type: Auto Start, Auto Stop, SV Start
- Timer setting time: 1 ~ 99 hours, 59 minutes
- Connection terminal: control output/3 P outlet, alarm output/sensor input/M 3.5 Y terminal block
- Accessories: Sheathed K Thermocouple sensor (0 ~ 750 deg.
- *The included K Thermocouple sensor is a standard type, so prepare a sensor for high temperatures separately.
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
