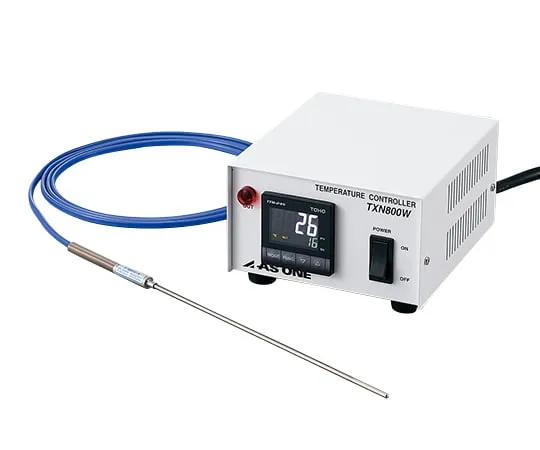

3-6768-01-20 Digital Temperature Controller (With Output For Alert) With Calibration Certificate TXN800W
Product Description
Product Model: 3-6768-01-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6768-01-20
Product Brand: AS ONE Corporation
Features
- An output terminal for alerting was installed in a general temperature controller.
- The output for alerts is 100 V/1 A specification, and various combinations of warning lights and buzzers are possible.
- Temperature control and alarm control can be set, and the alarm output is turned on when the alarm setting is reached.
- The temperature control system is PID control, which enables high-precision temperature control.
- It is a double component of SSR and relay in which the relay circuit shuts off continuous energization in case of SSR failure.
- The OUT lamp shows the current output status at a glance.
Spec
- Model number: TXN 800W
- Specification: 130 x 160 x 84mm
- Power supply : AC100V 50/60Hz
- Connected capacity: AC100V MAX 15 A (Includes output for alerts)
- Temperature control method: PID control (With auto tuning)
- Output control method: voltage output by SSR
- Safety features: SSR and relay double components, 15 A f***
- Power cord : Approximately 1.8 m (3P plug)
- Weight: about 1.5kg
- Temperature display accuracy: ±2 ℃ or ±(0.3% + 1 digit), whichever is larger
- Sensor Type: K thermocouple
- Set temperature: 100 to + 1000 ℃
- Setting method: UP/DOWN key
- Timer Type: Auto start, Auto stop, SV start
- Timer settable time: 1 to 99 hours 59 minutes
- Connecting terminal: Control output/3P outlet, Alarm output/Sensor input/M3.5 Y terminal block
- Accessories: Sheath K class thermocouple Sensor (0 to at 750 ℃)
- *The attached K class thermocouple sensor is a standard type, so please prepare the sensor for high temperature separately.
- Accessories: Calibration certificates
- *Products with calibration certificate is a service where equipment is calibrated and calibration certificate is issued at the time of shipment.
