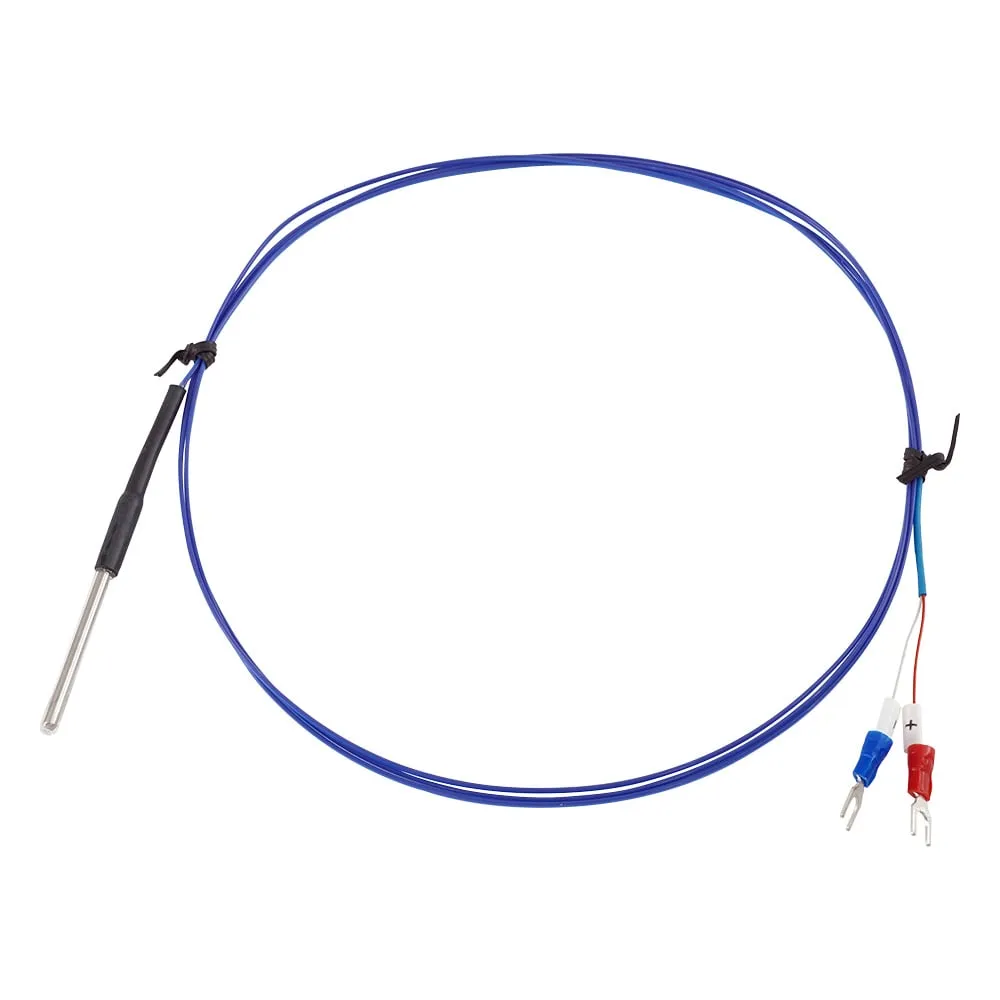

3-6633-01-57 K Thermocouple (sheath type, Teflon R-coated) M4Y terminal type 50 mm with Chinese Calibration Certificate DS-2010-50
Product Description
Product Model: 3-6633-01-57Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-6633-01-57
Product Brand: AS ONE Corporation
Features
- The sheath is coated with PFA (Fluoropolymer), so it has excellent acid and corrosion resistance.
Spec
- Sheath outer diameter: phi 4.0 mm
- Sheath length (mm): 50
- Temperature range (deg. C): -50 to + 200
- Material: Sheath part/Stainless steel (SUS 304) PFA (Fluororesin) coating, Lead wire coating material/Teflon ® (Fluororesin)
- Lead wire length: 2 m
- Lead wire terminal: M4Y terminal
- Heat-resistant temperature: sheath/lead/200 degrees Celsius
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
