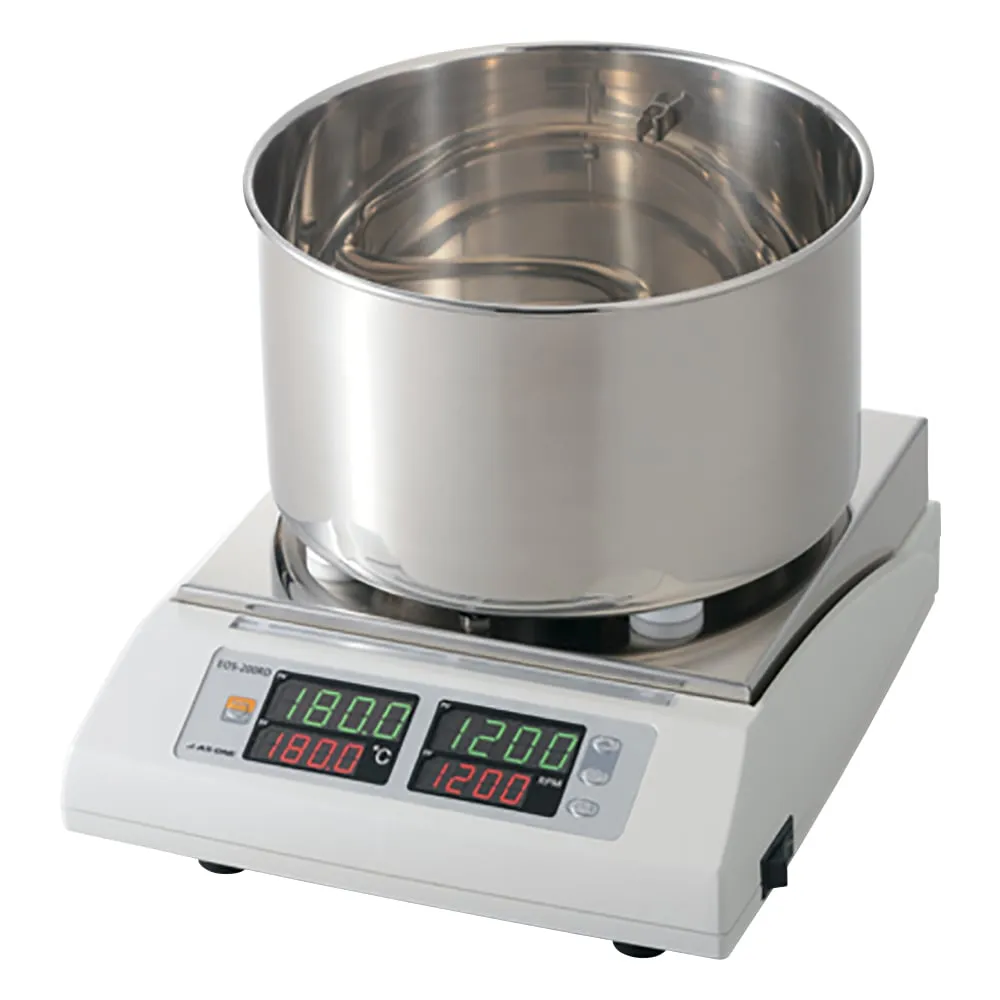

1-2952-01 EC Oil Bath Stirrer Digital EOS-200RD
Product Description
Product Model: 1-2952-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-2952-01
Product Brand: AS ONE Corporation
Features
- Stable rotation speed control is possible by microcomputer type feedback control.
- Made of engineer plastic (Noril resin (R)) for excellent strength, heat resistance and chemical resistance.
- Temperature and rotation speed can be operated indep***ently for easy setting.
- When the temperature rises excessively, the heater is forcibly turned OFF and an error is displayed.
- Popular type of oil bath stirrer.
Spec
- Model number: EOS-200RD
- Temperature settings range: Room temperature +5 - 230℃ (0.1℃ unit)
- Digital
- Motor: AC motor
- Material: Body/Noryl resin R, Tank/Stainless steel (SUS304), Heater/Stainless steel (SUS304) nickel plating
- Heater capacity: 750W
- Safety device: Temperature excessive rise prevention device, overcurrent prevention f***
- Power supply: 100VAC 50/60Hz 800W (cord length 2m, 3P plug)
- Accessories: Stir bar (φ8 x 30mm) x 1 pc
- Temperature control system: Microcomputer type PID control (2 steps)
- Display precision: +/- 0.5%rdg or +/- 1℃ (larger one) +/- 1dgt
- Temperature sensor: Resistance thermometer (Pt100Ω)
- Rotation speed setting range: 100 - 1500rpm (10rpm unit)
- Weight: Approx 3.4kg
- External dimensions: 240 x 280 x 220mm
- Chamber dimensions: φ208 x 123mm
- *When samples are stirred directly, *** containers of φ110mm or less instead of the duckboard.
