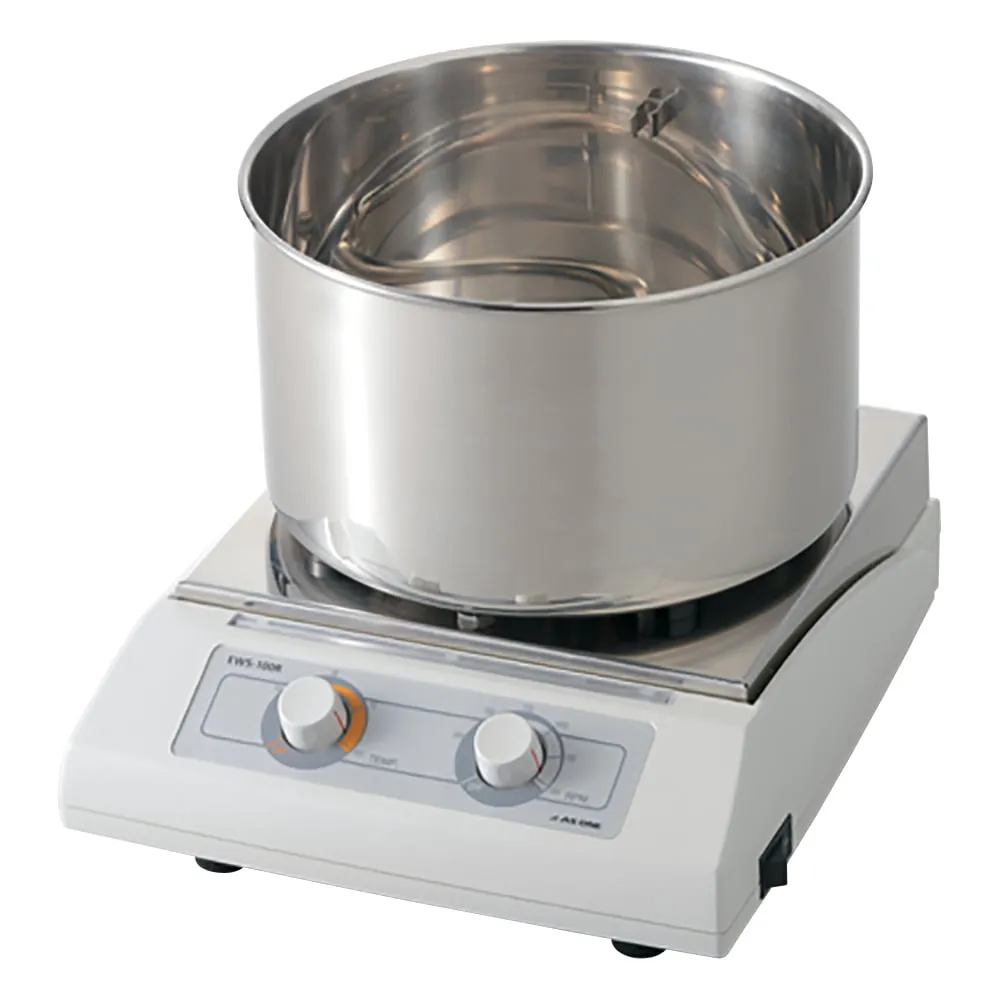

1-2949-01-22 EC Water Bath Stirrer Analog Type with Pre-Shipment Inspection Document EWS-100R
Product Description
Product Model: 1-2949-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-2949-01-22
Product Brand: AS ONE Corporation
Features
- Stable rotation speed control is possible by microcomputer feedback control.
- Since it is made of engineer plastic (Noryl resin (R)), it has excellent strength, heat resistance and chemical resistance.
- Temperature and rotation speed can be indep***ently operated for easy setting.
- Heater is forcibly turned off when the temperature is too high and an error message is displayed.
Spec
- Analog
- Temperature Setting Range: Room Temperature +5~95°C
- Temperature control system: Microcomputer type proportional control
- Speed setting range: 100~1500rpm
- Weight: Approx. 3.3 kg
- Temperature Sensor: Resistance Temperature Measuring Body (Pt100 Ω)
- motors: AC motors
- Material: Body/Noryl Resin (R), Tank/Stainless Steel (SUS304), Heater/Stainless Steel (SUS304) Nickel Plated
- Heater Capacity: 750 W
- Safety Device: Excess Temperature Rise Prevention Device, Overcurrent Prevention F***
- Power Supply: 100 VAC, 50/60Hz, 800 W (Cord Length 2 m, 3P Plug)
- Accessory: Stirrer (φ8 x 30 mm) x 1
- External Dimensions: 240 x 280 x 220 mm
- Tank Inner Dimension (mm): φ208 x 123
- *When stirring the sample directly, do not *** a drainboard and *** a container of φ110 mm or less.
- Model Number: EWS-100R
- This product is compatible with the validation service (IQ/OQ). Please contact us.
- *The validation service is a service where installation qualification (IQ) and operation qualification (OQ) are performed at the customer's site and an inspection report is submitted.
