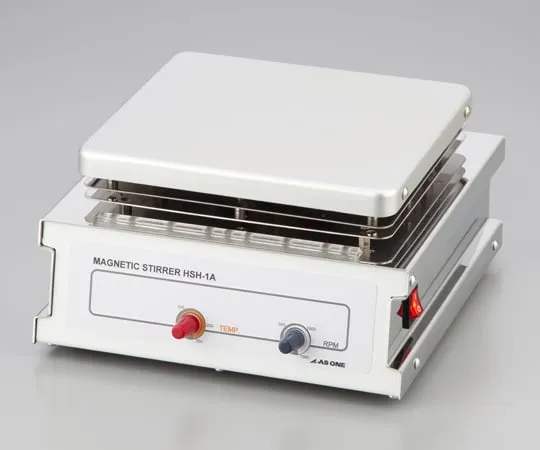

1-2937-01-22 Hot Stirrer (analog) with Pre-shipment Inspection Certificate HSH-1A
Product Description
Product Model: 1-2937-01-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-2937-01-22
Product Brand: AS ONE Corporation
Features
- A basic hot stirrer with a metal casing.
- Precision temperature control is possible by PID temperature control system.
- It has a safety lamp on the front of the unit and lights up until the plate temperature falls below 60°C.
- The plate has excellent heat and chemical resistance.
- The sample temperature can be directly controlled by using an external temperature sensor (sold separately).
- The adoption of a DC brush motor (microcomputer type rotation speed feedback control) enables stable rotation from low to high speeds.
Spec
- Analog
- Temperature control method: PID control
- Temperature setting range: MAX approx. 250 deg.
- Heater capacity: 300 W
- Material: Plate/Aluminum (Fluororesin coating), Body/Stainless (SUS 304)/Steel (SPCC)
- Power supply: 100 VAC 50/60 Hz
- Plate size: 165 x 150 mm
- Body size: 190 x 215 x 110 mm
- Magnet Strength: 0.13 T
- Weight: approximately 2.5 kg
- Speed (rpm): MAX Approx. 1500
- Stirring capacity (mL): 50 ~ 3000 x 1
- Recomm***ed rotor: Φ8 x 30 mm
- *A rotor is not included.
- Inspection contents App***ix: Inspection inspection documents
- Measured speed/measured temperature/insulation resistance value/apPearance
- App***ix: Inspection Certificate documents
- *Products with Inspection Certificate are Azwan's original service that includes inspection of control and electric engine personnel and issuance of inspection documents at the time of shipment.
