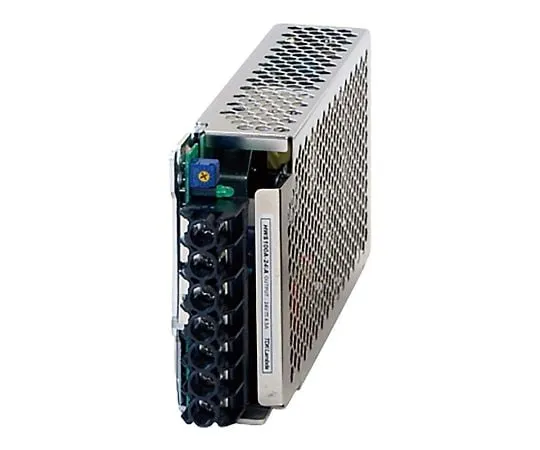

4-1751-01 Switching power supply (AC/DC) 100 W 24 V Output HWS100A-24/A
Product Description
Product Model: 4-1751-01Product Brand: TDK-Lambda Corpo […]
Contact Us
Product Details
Product Model: 4-1751-01
Product Brand: TDK-Lambda Corporation
Features
- A load factor of 100% is guaranteed when the ambient temperature is set at + 50 degrees Celsius, giving you more freedom in designing the mechanism even when the temperature inside the installation is high (operating ambient temperature: - 10 ~ 70 degrees Celsius).
- Compatible with SEMI-F 47 standard(at 200 VAC input).
- Adoption of a "safety terminal" prevents the terminal screw from falling off, thus preventing the screw from being lost.
Spec
- rating output voltage ( V ) : 24
- capacity (W): 100 W
- Input voltage range: 85 to 265 VAC (300 VAC 5 sec)/120 to 370 VDC
- Operating ambient temperature: -10 to + 70 deg. C (-10 to + 50 ° C: 100% load)
- Harmonic input current regulation: IEC 61000 -3 -2 compliance
- Leakage current: 0.5 mA or less
