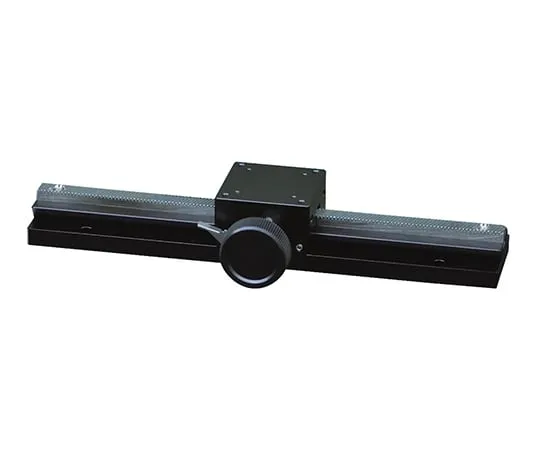

3-9848-01 Long-Actuated Stage 160mm LS-414L2
Product Description
Product Model: 3-9848-01Product Brand: CHUO PRECISION I […]
Contact Us
Product Details
Product Model: 3-9848-01
Product Brand: CHUO PRECISION INDUSTRIAL Co., Ltd.
Features
- It is a long operation moving unit using an ant groove (D-T system) as a moving guide.
- It is widely available for positioning applications such as cameras and sensors.
- Blocks can be added and multiple mobile units can be installed on a single rail.
- Can be fixed by a lever type clamp with high holding force at any position.
- A memory seal and indicator seal with a scale of 1 mm and a length of 1000 mm are included.
Spec
- Transfer amount (On Rail): 160mm
- Weight (kg): 0.42
- Material : Aluminum alloy (Black alumite satin finishing)
- Stage: 40 x 40mm
- Transfer amount (1 turn of knob): about 18mm
- Eye volume: 1 mm
