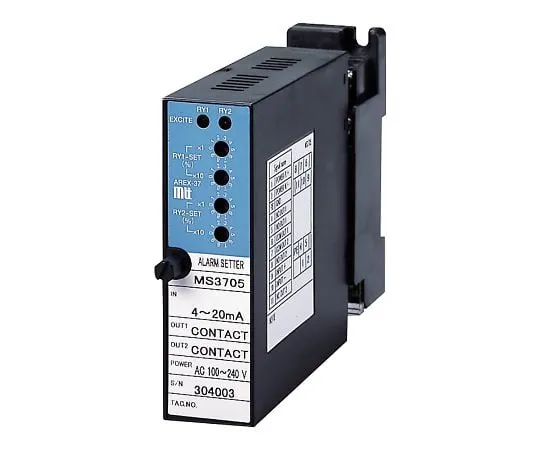

4-2418-01 Thin Plug-In insulation 2-Point Alarm Setter MS3705-A-AHL
Product Description
Product Model: 4-2418-01Product Brand: Others Features […]
Contact Us
Product Details
Product Model: 4-2418-01
Product Brand: Others
Features
- The DC input signal is compared with the two set points arbitrarily set by the front rotary switch, and the relay contact signal is output.
- In this digital setting method, the rotary switch is ***d to set the set point in the range of 0 ~ 99% (1% steps).
Spec
- Output: Relay contact 2 (C contact)
- Input Signal (mA): DC4 to 20
- Supply power supply: AC100 to 240 V 50/60 Hz
- Output Mode: H/Relay De-excitation (Input value < Set value)/Relay Excitation (Input value > Set value), L/Relay Excitation (Input value < Set value)/Relay De-excitation (Input value > Set value)
- Allowable Voltage Range: 85 VAC to 264 V
- Input Resistance: Current Input (DC)/4 to 20 mA (Standard) 250 Ω
- Allowable Input Voltage: Current Input Type/DC 40 mA max. Continuous
- Relay Contact: rating Load/5 A 125 VAC/5 A 30 VDC, Maximum Allowable Voltage/250 VAC/30 VDC, Maximum Allowable Current/5 A (N.O.)/3 A (N.C.)
- Mounting method: Wall mounting, DIN rail mounting common
- Wiring Methods: M3.5 Screw Terminal Connections
- external dimension : 29 x 125 x 86 mm (Including mounting screws and socket terminal block)
- Weight: Body/120 g or Less, Socket Terminal Block/80 g or Less
