Spec

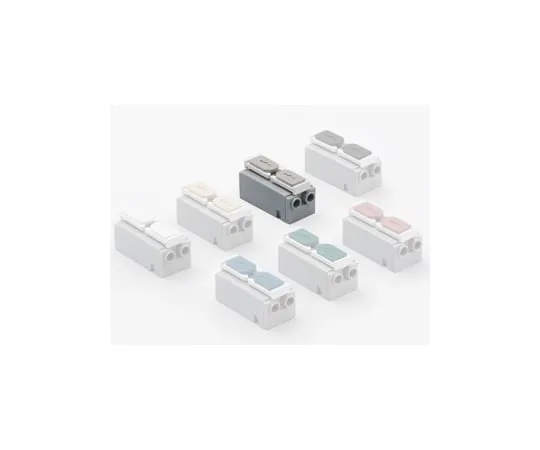

• connector configuration one-touch terminal
• Number of poles 4 poles
• Panel mounting method
• Outline 14 mm x 31 mm x 15.2 mm
• Button Color Gray
• Rated 300 V -10 A
• Withstand voltage: 2000 V AC (1 minute)
• Insulation resistance: 20 m.OMEGA. or less
• Mounting screw pitch
• Rated compliant single wire: phi 1.2 mm (AWG 16), twisted wire: 1.25 mm ^ 2 (AWG 16), wire diameter phi 0.18 or more
• Usable wire range: single wire: phi 0.4 mm to phi 1.6 mm (AWG 26 to AWG 14)
• Stranded wire: 0.3 mm ^ 2 ~ 1.25 mm ^ 2 (AWG 22 to AWG 16), wire diameter phi 0.18 or more.
• Standard stripping line length 11 mm
