Electronic/Electrical Parts and Controll Equipments

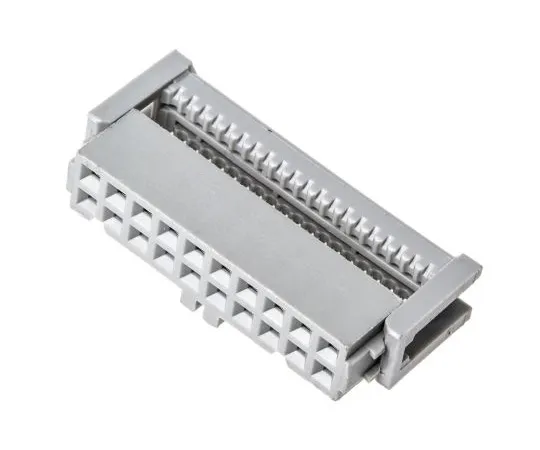

63-4764-38 3M 20-Way IDC Connector Socket for Cable Mount, 2-Row 89120-0101HA
Product Description
Product Model: 63-4764-38Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-4764-38
Product Brand: 3M Company
Features
- 3M 891 Series 2.54 x 2.54mm IDC Ribbon Cable Sockets. 891 series 2.54 x 2.54mm IDC ribbon cable sockets with military polarization and centre bumps. These 891 series IDC ribbon cable socket connectors have a double-recessed cover which allows cable to be terminated from either side and are supplied preassembled. Strain reliefs ( ; 192-7530 192-7530 typically) are available separately
Spec
- Quantity：1piece
- Number of Contacts : 20
- Number of Rows : 2
- G***er : Female
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDC
- Current Rating : 1A
- Contact Plating : Gold over Nickel
- Series : 891
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +105°C
- Voltage Rating : 1 kV ac
- Housing Material : PBT
- CODE No.:323-7889
