3-682-11 Temperature stable semiconductor laser 405 +/- 5 nm TCSQ2-04050150-4
Product Description
Product Model: 3-682-11Product Brand: NEOARK Features B […]
Contact Us
Product Details
Product Model: 3-682-11
Product Brand: NEOARK
Features
- By controlling the operating temperature, the output and oscillation wavelength are stabilized, and the life of the LD element is ext***ed.
- It's small, lightweight, and easy to install and install (a surface adapter is also available).

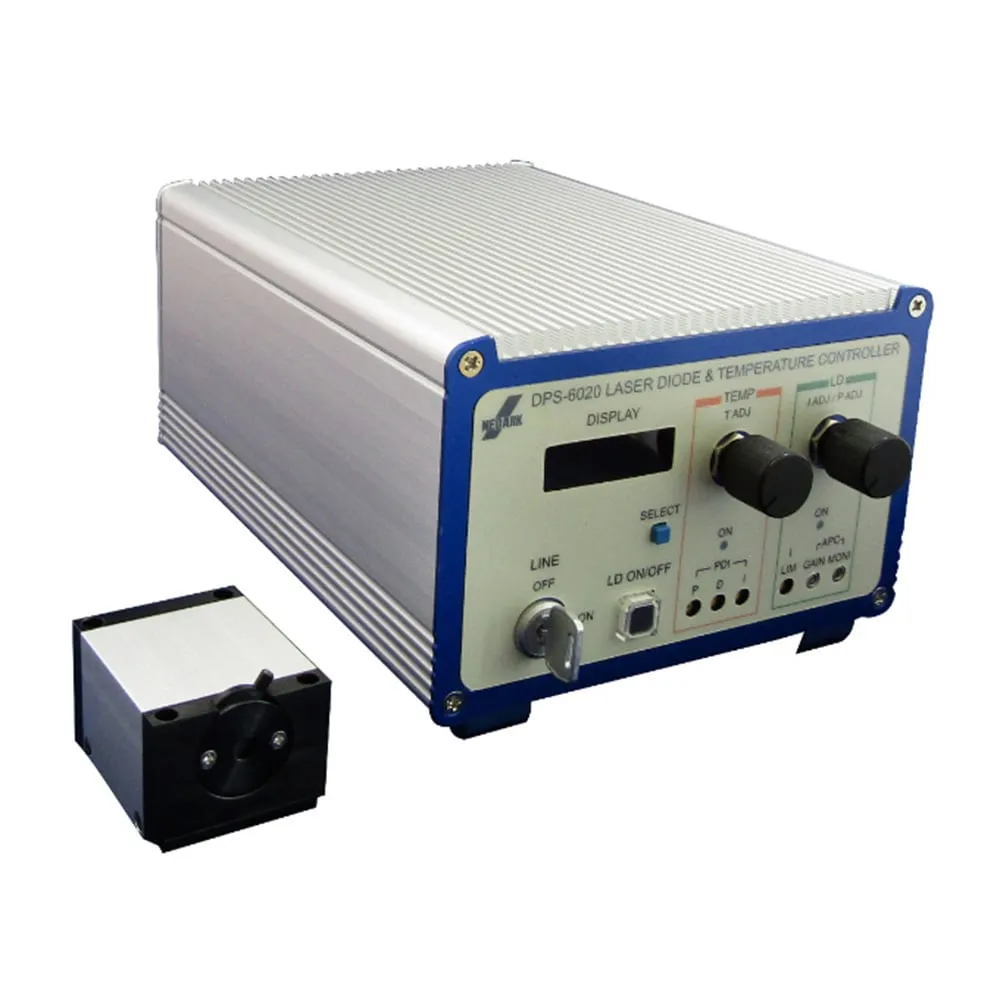

- Modulation of up to 500KHz is possible (with DPS -6020). *An external modulator is required separately.
Spec
- Oscillation wavelength (nm): 405 +/- 5
- LD Element Output (mW): 150
- Outlet power (mW): 105
- Number of pieces: 1
- Outlet beam diameter: about 1 x 2 mm
- Oscillation mode: vertical multi/horizontal single, polarized/horizontal
- Class: 3B
- Laser drive system: ACC/APC (APC is based on LD element), dedicated power supply DPS -6020
- Laser head size: 40 x 57 x 37 mm
- Weight of laser head: approximately 100 g (without cables)
