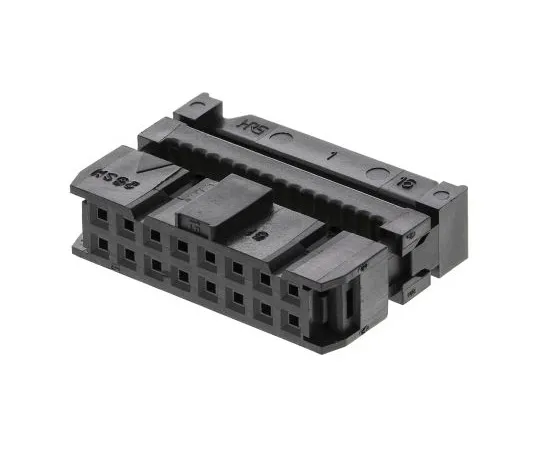

63-4763-93 Hirose 16-Way IDC Connector Socket for Cable Mount, 2-Row HIF3BA-16D-2.54R
Product Description
Product Model: 63-4763-93Product Brand: Hirose Features […]
Contact Us
Product Details
Product Model: 63-4763-93
Product Brand: Hirose
Features
- Hirose 2.54mm HIF3B Series MIL Standard IDC Ribbon Cable Socket Connectors with Mis-Insertion Guides. HIF3B series 2.54mm IDC ribbon cable socket connectors made from black UL94V-0 PBT with a double row contact alignment. These HIF3B series IDC ribbon cable sockets are MIL standard compliant (apart from 6 and 10 pole versions), have a mis-insertion mechanism comprising of polarizing guides and polarizing keyways along with a strain relief and accept UL2651 AWG 28 flat cable. For polarization guide and keyway combinations please refer to manufacturers datasheet
Spec
- Quantity：1piece
- Number of Contacts : 16
- Number of Rows : 2
- G***er : Female
- Pitch : 2.54mm
- Mounting Type : Cable Mount
- Body Orientation : Right Angle
- Termination Method : IDC
- Current Rating : 1A
- Contact Plating : Gold
- Series : HIF3B
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +85°C
- Voltage Rating : 200 V ac
- Contact Material : Beryllium Copper
- CODE No.:322-1042
