1-3415-01 ［Discontinued］Thermo Microscope AS320MACRO
model:
1-3415-01
category:
toner
Product Description
Product Model: 1-3415-01 Features 2mm square object can […]
Contact Us
Product Details
Product Model: 1-3415-01
Features
- 2mm square object can be photographed.
- Suitable for temperature measurement of optical fibers, chip LEDs, ICs, etc., and crack detection of solar cells.
- If you connect the camera to your computer with a USB cable, images can be displayed and temperatures can be measured.
Spec
- Model number: AS320MACRO
- Detecting element: Uncooled microbolometer
- Focal length: About 15 - 40mm
- Measurement wavelength: 8 - 14μm
- Resolution: 320 x 240 (QVGA), Pitch/23.5μm
- Frame rate: 30fps
- Interface: USB2.0
- Supported OS: Windows (R) XP/VistaTM (32, 64 bit)/7 (32, 64 bit)
- Power supply: DC12V (including AC adapter)
- Size: 72 x 112 x 62mm
- Weight: Approx 600g
- Temperature range: 0 - 300℃
- Accessories: USB cable, Body tube for proximity photographing, Viewer software, Germanium lens
Related product recommendations
You may also be interested in the following products
toner
1-2561-01-20 Drip-Proof Scale With Calibration Certificate CS-1000S
model: 1-2561-01-20
brand: CUSTOM corporation
toner

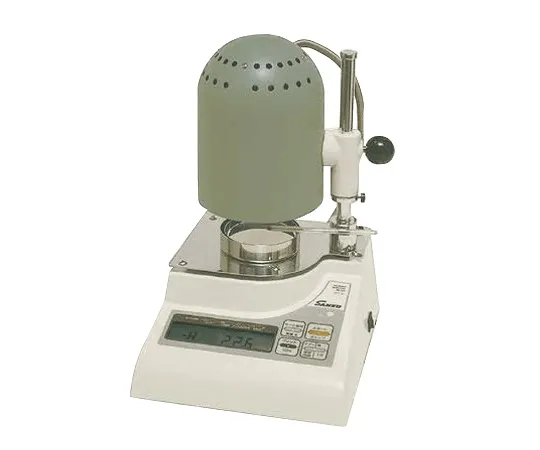

62-2051-29 ［Discontinued］InfraRed Moisture Meter Standard Type SD-30
