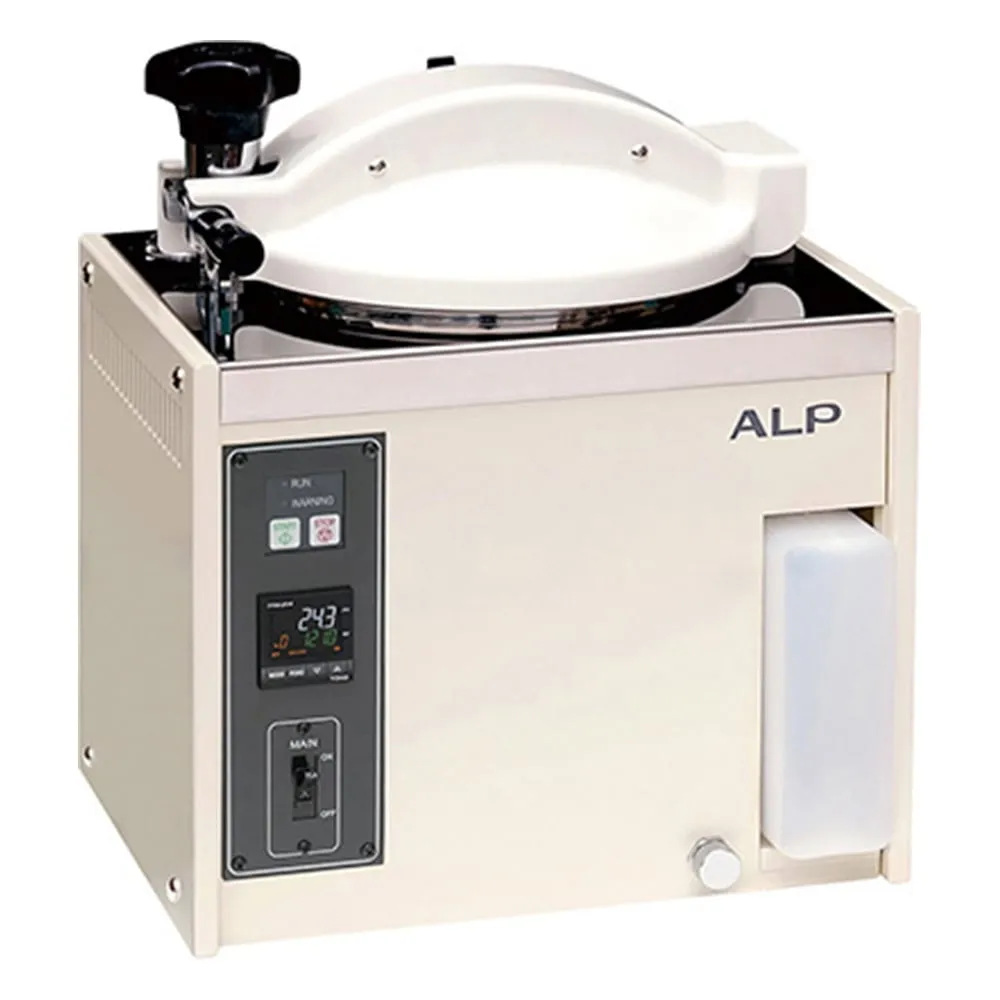

6-9743-31-22 Small High-Pressure steam Sterilization 12 L with Inspection Document KTR-2322
Product Description
Product Model: 6-9743-31-22Product Brand: ALP Co., Ltd. […]
Contact Us
Product Details
Product Model: 6-9743-31-22
Product Brand: ALP Co., Ltd.
Features
- The air vent type with temperature detection and time control solenoid valve ensures sterilization according to load.
- After sterilization, cool down naturally, open the lid, lower the temperature to safety, and then turn off the operation lamp.
- It also has a forced exhaust valve.
Spec
- External Dimensions (mm): 380 x 340 x 430
- Can Capacity: 12 L
- Can Body Size (mm): Φ230 x 220
- Operating Temperature Range: 110~125°C (Setting/0.1°C Interval)
- Operating Pressure Range: 0~0.16 MPa
- Timer: 1 sec ~99 min 59 sec (Digital temperature control)
- Can Body/Lid/Surface Plate Material: SUS304, Lid Packing: Silicone Rubber Molded Product
- Outer Plate Material: Steel Plate/Melamine Baked Coating
- Anti-Depletion Device: Heat Sensing Hydraulic Switch
- Pressure relief device: Cut-off method with pressure sensing sensor (Heater power off, alarm buzzer, red lamp lights)
- Safety Valve: Stainless Spring System Blow Pressure: 0.18 MPa
- Breaker: Overcurrent breaker (ground fault breaker: optional)
- Heater: 1.0 kW
- Power: 100 VAC 50/60Hz
- Power: 10 A
- Weight: 16 kg
- Attached Stainless Steel Net Basket: φ210 x 200 mm x 1
- Attached Exhaust Drain Receiving Tank: Poly Tank x 1
- *This product is not a medical device.
*This product might require extra fees.
