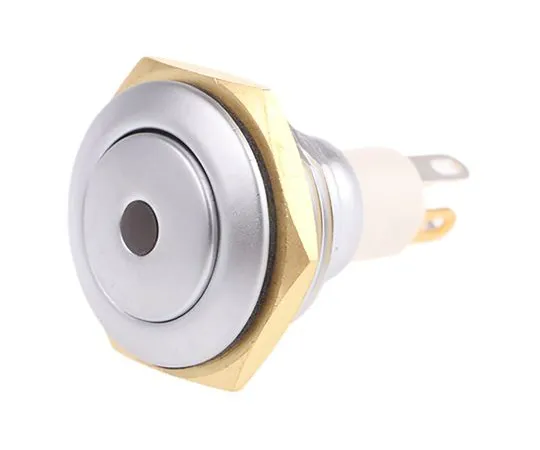

63-4761-07 ITW Single Pole Single Throw (SPST) Momentary Green LED Miniature Push Button Switch, 12.15 (Dia.)mm, Panel Mount 57-112G
Product Description
Product Model: 63-4761-07Product Brand: ITW Features Mi […]
Contact Us
Product Details
Product Model: 63-4761-07
Product Brand: ITW
Features
- Miniature Switches. These 57M Series are miniature panel sealed metal push buttons from ITW, they have been designed for rugged environments and can be ***d in numerous applications. Such as:-. Industrial Control Medical Equipment Military Equipment Security Equipment Food Processing Transportation Computers. Features and Benefits. Panel sealed to IP67 – (totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes). Switches fit the industrial standard, a diameter of 16mm panel cut out. Flush mounting making it highly resistant to high *** Zinc alloy/ velour chrome plated. Gold plated contacts and terminals. Electro-mechanical. Non-lit/ illuminated versions. Different LED colours available.
Spec
- Quantity：1piece
- Switch Operation : Momentary
- Mounting Type : Panel Mount
- Illuminated : Yes
- Contact Configuration : Single Pole Single Throw (SPST)
- Panel Cut Out Size : 12.15 (Dia.)mm
- Panel Cut Out Diameter : 12.15mm
- LED Colour : Green
- Contact Current Rating : 400 mA @ 32 V ac
- Actuator Shape : Dome
- Terminal Type : Solder
- Actuator Type : Button
- CODE No.:314-9316
