64-1202-80 ［Discontinued］Housing 1PP-2-FV-000 43024000
Product Description
Product Model: 64-1202-80Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 64-1202-80
Product Brand: ADVANTEC
Features
- Plastic housing for one piece consisting of head and torso.
- High-purity polypropylene, free of fillers and colorants, rarely elutes from the housing and can be ***d to filter high-purity chemicals and ultrapure water.
- Since the inner surface of the housing is smooth, the retention and adhesion of fine particles and microorganisms are unlikely, and the sanitary property is excellent.
- 1PP type is available for 250 mm filter size type and 500 mm filter size type. You can select models that can support cartridge filter shape codes C, F (flat gasket DOE), TCW type and M, H (222 O-ring SOE).
Spec
- Number of Cartridges: 500 mm x 1 piece
- Applicable Cartridge Filter Shape Codes: C, F (Flat Gasket DOE) and TCW Type
- IN/OUT Shape: 3/4 "PTF (3/4" with PT Nipple)
- Dimensions : overall height ( mm )/340 , full width/200 mm
- maximum working pressure: 0.49 MPa (25 °C), 0.19 MPa (60 °C)
- Maximum operating temperature: 60 °C
- material: Head/Polypropylene, Trunk/Polypropylene, O-Ring/FPM, Vent/SUS304 (Push Button Type/Standard), Adapter/Polypropylene, Adapter Spring/SUS304 (Standard), 3/4 "PT Nipple/Polypropylene
- Mass (kg): 0.84
- Pressure gauge: none (typical)
- *1PP type cannot be ***d for gas filtration.
- *Wrap the sealing tape around the piping taper screw.
- *This product ***s plastic, so it will deteriorate over time.
- *The degree of deterioration varies dep***ing on the temperature, pressure, and chemical history of the operating conditions. If any abnormalities are found, replace the product with a new one or replace parts sold separately.
- *Do not connect metal piping directly to the head.
- *Do not tighten the vent plug or drain plug with a tool such as monkey wrench.
Related product recommendations
You may also be interested in the following products
laboratoryinstruments
67-2190-33 Capsule Filter CIK PTFE hydrophobic bio-burden 0.2 μm 5 inch 2650 cm2 CIKPT0020BNLL5TCHH0
model: 67-2190-33
brand: GVS
laboratoryinstruments
laboratoryinstruments

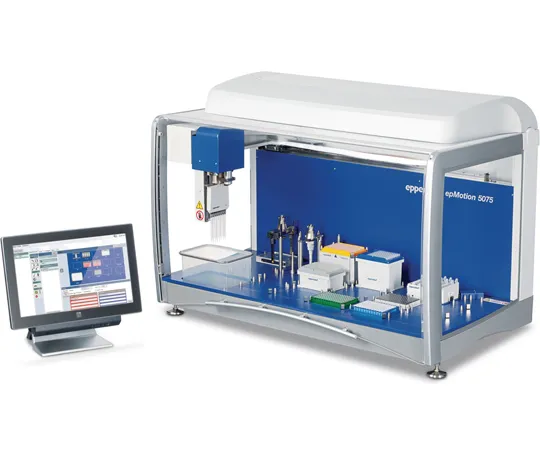

65-3744-89 ［Discontinued］epMotion 5075 t NGS solution Package 5075000962
