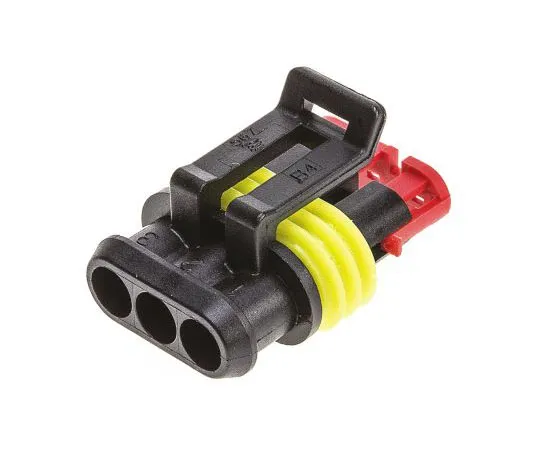

63-4760-47 TE Connectivity AMP Superseal 1.5 Male Connector Housing, 6mm Pitch, 3 Way, 1 Row 282087-1
Electronic/Electrical Parts and Controll Equipments

63-4760-47 TE Connectivity AMP Superseal 1.5 Male Connector Housing, 6mm Pitch, 3 Way, 1 Row 282087-1

model: 63-4760-47
brand: TE Connectivity

Product Description

Product Model: 63-4760-47Product Brand: TE Connectivity […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4760-47
Product Brand: TE Connectivity

Features

  • For Superseal series 1.5 contacts see ; 314-1334 314-1334 , and range. For crimp tool see ; 314-1362 314-1362 , and for secondary lock extraction tool see ; 368-4516 368-4516 For suitable male housings see ; 314-1205 314-1205 , and for female housings see ; 314-1277 314-1277 , and associated ranges. TE Connectivity 1.5 Superseal Series, Connector Housings - AMP Superseal 1.5. Our range of TE Connectivity, PCB Connector Housings form part of the 1.5 superseal series. A typical applications for these types of housings are to provide a receptacle for connectors when they ate mounted to a printed circuit board. These types of fittings are an essential component that offer protection for the connection that it is housing.. Features and Benefits. Comprised of black 6.6 glass filled poly-amide 1 - 6 positions Plug housings for receptacle contacts, cap housings and tab contact variants Pre-assembled secondary lock Silicon rubber seals Panel or cable mount Temperature range of the 1.5 mm pitch superseal series is of -40 to +125°C Suitable for powertrain, security, and body ; chassis systems Dielectric withstand voltage 1500 Vrms

Spec

  • Quantity:1bag(5pieces)
  • Number of Contacts : 3
  • Number of Rows : 1
  • Pitch : 6mm
  • G***er : Male
  • Mounting Type : Cable Mount
  • Series : AMP Superseal 1.5
  • For Use With : Centerline Wire-to-Wire Connector
  • Body Orientation : Straight
  • Length : 32.2mm
  • Housing Material : Nylon
  • CODE No.:314-1205
