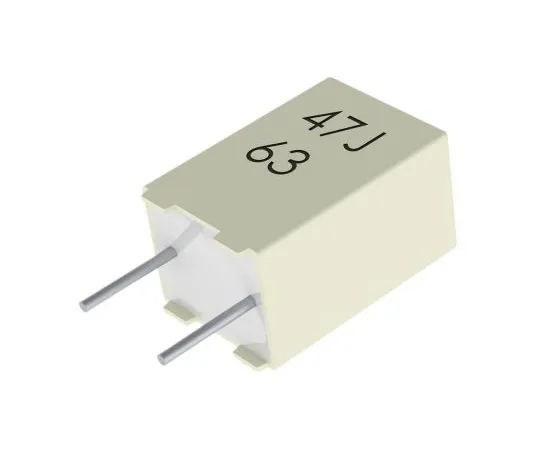

63-4760-08 KEMET 15nF Polyester Capacitor PET 63 V ac, 100 V dc ±5% R82 Series Through Hole R82EC2150DQ50J
Electronic/Electrical Parts and Controll Equipments

63-4760-08 KEMET 15nF Polyester Capacitor PET 63 V ac, 100 V dc ±5% R82 Series Through Hole R82EC2150DQ50J

model: 63-4760-08
brand: KEMET

Product Description

Product Model: 63-4760-08Product Brand: KEMET Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-4760-08
Product Brand: KEMET

Features

  • KEMET Miniature R82 Series. KEMET R82 series are metallised polyester film with radial leads of tinned wire. The R82 series radial leads are electrically welded to the contact metal layer on the ***s of the capacitor winding. The capacitors are encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material. Typical applications for the R82 series include blocking, coupling, decoupling, timing and oscillator circuits. Features. Wide voltage range 50 V dc to 400 V dc RoHS compliance and lead-free terminations Self-healing Capacitance range 0.001 μF – 4.7 μF Lead Spacing 5 mm Capacitance tolerance ±5%, ±10%, ±20% Climatic category 55/105/56 Operating temperature range of -55˚C to +105˚C Tape and reel packaging in accordance with IEC 60286–2 Automotive (AEC–Q200) grades available. Applications. Typical applications include blocking, coupling, decoupling, timing and oscillator circuits.

Spec

  • Quantity:1bag(10pieces)
  • Capacitance : 15nF
  • Voltage : 63 V ac, 100 V dc
  • Mounting Type : Through Hole
  • Lead Pitch : 5mm
  • Series : R82
  • Tolerance : ±5%
  • Dielectric : PET
  • Length : 7.2mm
  • Depth : 2.5mm
  • Height : 6.5mm
  • Dimensions : 2.5 x 6.5 x 7.2mm
  • Minimum Operating Temperature : -55°C
  • Maximum Operating Temperature : +105°C
  • Lead Diameter : 0.5mm
  • CODE No.:312-1497
