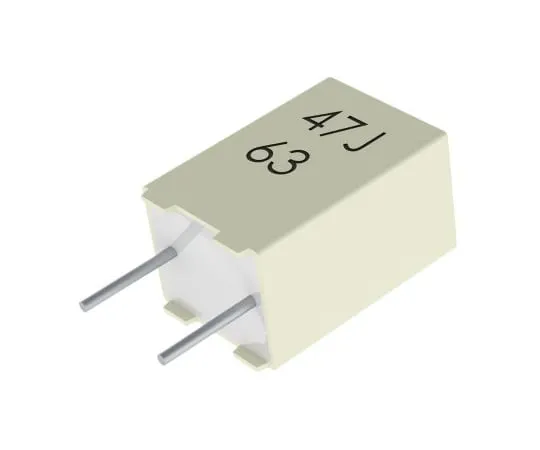

63-4760-05 KEMET 100nF Polyester Capacitor PET 40 V ac, 63 V dc ±5% R82 Series Through Hole R82DC3100DQ50J
Product Description
Product Model: 63-4760-05Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-4760-05
Product Brand: KEMET
Features
- KEMET Miniature R82 Series. KEMET R82 series are metallised polyester film with radial leads of tinned wire. The R82 series radial leads are electrically welded to the contact metal layer on the ***s of the capacitor winding. The capacitors are encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material. Typical applications for the R82 series include blocking, coupling, decoupling, timing and oscillator circuits. Features. Wide voltage range 50 V dc to 400 V dc RoHS compliance and lead-free terminations Self-healing Capacitance range 0.001 μF – 4.7 μF Lead Spacing 5 mm Capacitance tolerance ±5%, ±10%, ±20% Climatic category 55/105/56 Operating temperature range of -55˚C to +105˚C Tape and reel packaging in accordance with IEC 60286–2 Automotive (AEC–Q200) grades available. Applications. Typical applications include blocking, coupling, decoupling, timing and oscillator circuits.
Spec
- Quantity:1bag(10pieces)
- Capacitance : 100nF
- Voltage : 40 V ac, 63 V dc
- Mounting Type : Through Hole
- Lead Pitch : 5mm
- Series : R82
- Tolerance : ±5%
- Dielectric : PET
- Length : 7.2mm
- Depth : 2.5mm
- Height : 6.5mm
- Dimensions : 2.5 x 6.5 x 7.2mm
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +105°C
- Lead Diameter : 0.5mm
- CODE No.:312-1469
