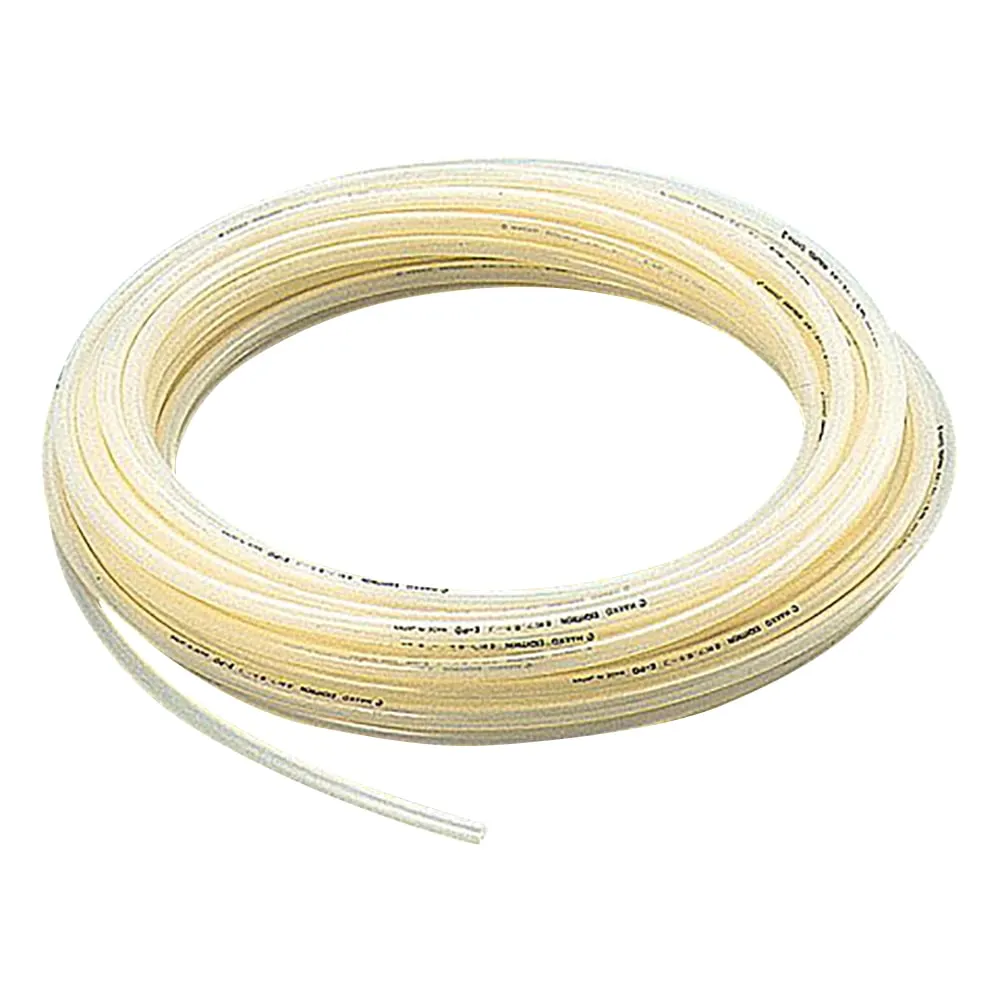

5-5322-01 Flexible Fluorine Hose 2 x 4 1 Roll (20m) E-PD-2
model:
5-5322-01
category:
automaticdiluter
Product Description
Product Model: 5-5322-01 Features Since it has a lamina […]
Contact Us
Product Details
Product Model: 5-5322-01
Features
- Since it has a laminated structure, it has superior flexibility and workability compared to a fluorine single-layer hose which is hard and easy to break.
- It is transparent so you can see the fluid.
- Fluoropolymer (2 fluorides) in the inner layer complies with the U.S. FDA and the Food Sanitation Law, Health and Welfare Notification No. 20.
Spec
- Material: Inner layer / Fluorine Plastic (PVDF), outer layer / special thermoplastic elastomer
- Code Number: E-PD-2
- Thermal temperature: 20 to + 80 ° C
- Inner diameter × outer diameter: φ2 × φ4 mm
- One volume (20 m)
- Standard length (Maximum Length): 20 m and 100 m
- maximum working pressure (20 ° C): ≦ 0.6 MPa
- minimum b***ing radius: 12 mm
- Applications: For transportation of chemicals, foods, beverages, oils, gasoline, etc
- * For the laminated structure, *** a joint that seals inside the hose
- * Sales are 20 meter units. The price is about 20 meters.
- RoHS3 (EU)2015/863 Certificates can be issued
