Analyzer, Testing Equipment

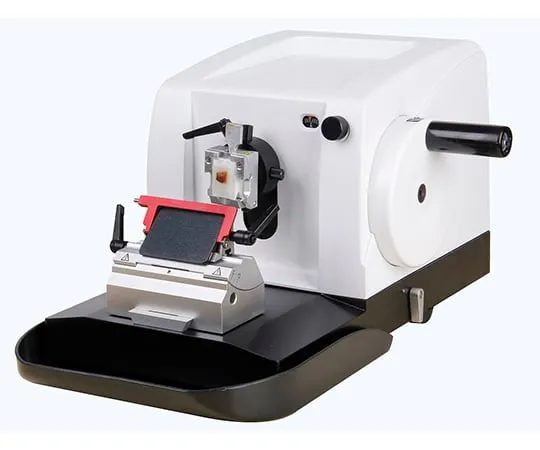

2-4312-01 Microtome OSK 97LF506 OSK97LF506
model:
2-4312-01
category:
Analyzer, Testing Equipment
Product Description
Product Model: 2-4312-01 Features Clamps can be fixed f […]
Contact Us
Product Details
Product Model: 2-4312-01
Features
- Clamps can be fixed from any three directions.
- Frozen sections and paraffin can be prepared by combining freezing units.
- There are two ways to lock the rotating wheel, the highest position and any position.
- There is a place to put a blade on the top.
Spec
- Applicable packaging material: Paraffin, Plastic
- Thin sliced scale range: 0.5 - 60μm
- Trimming scale range: 1 - 60μm
- Measurement scale range: 0.5 - 2μm/0.5μm intervals, 2 - 10μm/1μm intervals, 10 - 20μm/2μm intervals, 20 - 60μm/5μm intervals
- Sample horizontal feeding: Maximum 28mm
- Stroke: 60mm
- Maximum sample size: 60 x 50mm
- Automatic feed, Cutting machine capacity with alarm
- Maximum desired temperature settings: Room temperature -55℃
- Frozen stage the maximum temperature difference: -60℃
- Frozen probe the maximum temperature difference: -50℃
- Frozen stage size: 45 x 40mm
- Cooling time: 4 - 7 minutes
- Power supply: AC100V 50/60Hz 300VA
- Accessories: Sample clamp, Substitute edge holder, Stainless substitute edge
- Outer dimension (mm): 500 x 460 x 300
- Weight (kg): 31
- Model number: OSK 97LF506
