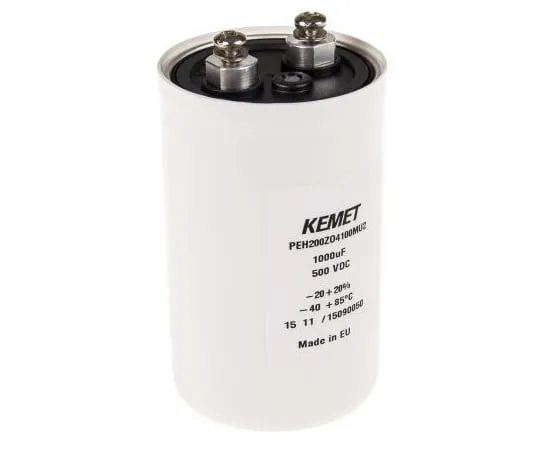

63-4759-30 KEMET 1000μF 500V dc Aluminium Electrolytic Capacitor, Chassis Mount 65 x 105mm +85°C 65mm 105mm PEH200ZO4100MU2
Product Description
Product Model: 63-4759-30Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-4759-30
Product Brand: KEMET
Features
- IEC 384-4 long life grade 40/85/56, DIN AEC-Q200 qualified. Screws and washers are not supplied. PEH200 Series. The PEH200 series of aluminium electrolytic converters from KEMET offer long life with low ESR and ESL in a compact size. These electrolytic capacitors feature a polarised, welded design with ext***ed cathode construction, heavy duty screw terminals, plastic insulation and a safety vent. The sealing system allows for a low gas-diffusion rate of electrolyte and electrolyte leakage-free operation. Features. Industrial grade Long life, high performance electrolytic capacitors High CV value with low equivalent series resistance (ESR), and low equivalent series inductance (ESL). Applications. Ground power units, Uninterruptible power supplies. Welding equipment and drives
Spec
- Quantity:1piece
- Capacitance : 1000µF
- Voltage : 500V dc
- Mounting Type : Chassis Mount
- Technology : Electrolytic
- Dimensions : 65 x 105mm
- Height : 105mm
- Length : 105mm
- Minimum Operating Temperature : -40°C
- Diameter : 65mm
- Maximum Operating Temperature : +85°C
- Lifetime : 15000 h @ +85 °C/500V dc/Ir
- Series : PEH200
- Leakage Current : 5.5 mA
- CODE No.:311-1169
