Features

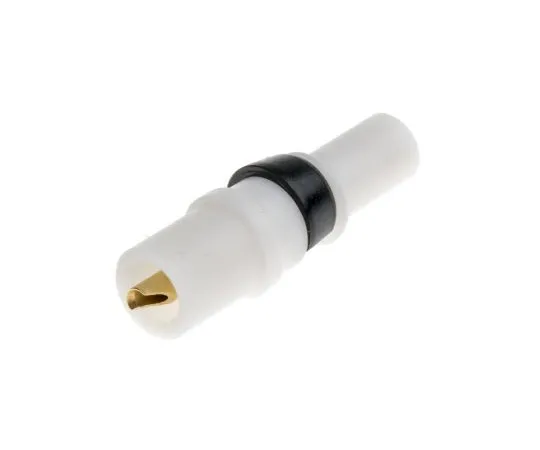

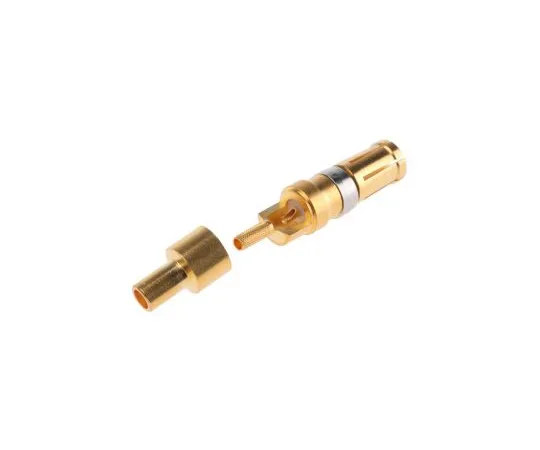

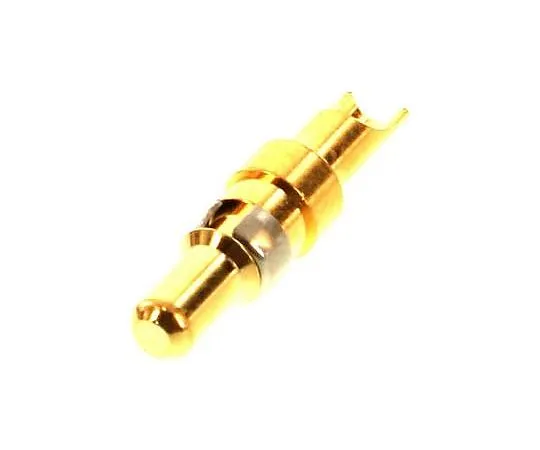

• G***er details relate to centre conductor. Power/Coaxial Contacts. A range of Contacts designed for *** in mixed layout Connector shells including Power, Coaxial and High Voltage types. PCB holes for coax plug and socket: 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia. PCB mounting inserts are not suitable for *** with right angle PCB connectors. PCB holes for 20A and 40A PCB contacts are 2.85mm and 3.75mm respectively. Snap-fit contacts removed with tool, stock no. ; 485-221 485-221 'M' DIN41612 connectors may also be ***d with mixed layout D shells 50 Ohm Coaxial contacts (straight) accept RG178B/U ; RG174A/U cables. Use crimp tool (stock no. ; 470-099 470-099 ) for the braid and solder for the centre contact. Contacts removed with tool, stock no. ; 485-221 485-221
