4-2691-12-24 ［Discontinued］Digital Multimeter 5 1/2 Digit with JCSS Calibration Certificate BDM521
Product Description
Product Model: 4-2691-12-24Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 4-2691-12-24
Product Brand: AS ONE Corporation
Features
- True rms measurement (AC) is possible.
- It is a display with excellent visibility.
Spec
- Display: 5 1/2 digits
- Count: 240,000
- Quantity: 1 Piece
- Resolution: 5 1/2
- Basic DCV accuracy: 0.015%rdg±0.004%FS
- Maximum measuring speed: 150 times/second
- DC Voltage: 200 mV/2 V/20 V/200 V/1000 V
- AC Voltage (True Reciprocal Value): 200 mV/2 V/20 V/200 V/750 V
- DC Current: 200.000uA/2.00000 mA/20.0000 mA/200.000 mA/2.00000 A/10.0000 A
- AC Current (True Reciprocal Value): 20.0000 mA/200.000 mA/2.00000 A/10.0000 A
- Resistance: 200.000 Ω/2.00000 kΩ/20.0000 kΩ/200.000 kΩ/2.00000 MΩ/10.0000 MΩ/100.000 MΩ
- 4 Wire Resistor: 200.000 Ω/2.00000 kΩ/20.0000 kΩ/200.000 kΩ/2.00000 MΩ/10.0000 MΩ/100.000 MΩ
- Capacitance: 2.000 nF/20.00 nF/200.0 nF/2.000uF/200uF/10,000 uF
- Frequency: 2 kHz/20 kHz/200 kHz/1 MHz
- Conductivity: 2000 Ω
- Diode: 2.0000 V
- Temperature: B/E/J/K/N/R/S/T Thermocouple/Pt100/Pt10/Cu100/Cu50
- Display: 4 inches
- Logger: every 5 ms (maximum 1 million points)
- Power: 100 AC 50/60Hz
- Size: 235 x 110 x 295 mm
- Weight: 2.3 kg
- Accessory: Test Lead
- Calibration items: DC voltage, DC current, resistance
Related product recommendations
You may also be interested in the following products
toner
65-4297-40-20 Sealed Pressure Gauge (75Φ) Vertical B Frame with 3 MPa with Inspection Certificate BC12-231
model: 65-4297-40-20
brand: NAGANO KEIKI Co., Ltd.
toner
65-4304-97-20 Sealed Pressure Gauge (100Φ) Embedded D Frame (Mounting Bracket) with 0.4 MPa with Inspection Certificate BE15-133
model: 65-4304-97-20
brand: NAGANO KEIKI Co., Ltd.
toner

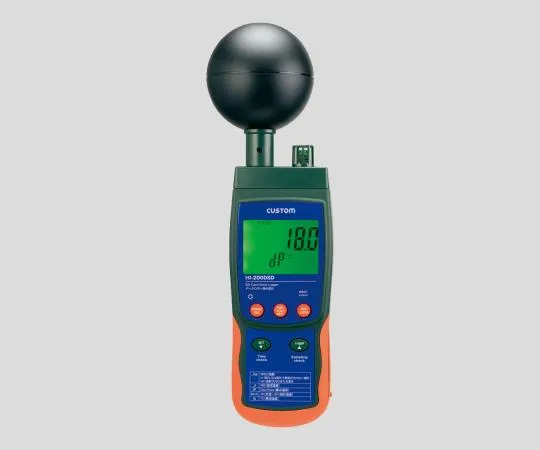

2-6794-01-20 ［Discontinued］Data Logger Heat Stroke Meter with Calibration Certificate HI-2000SD
