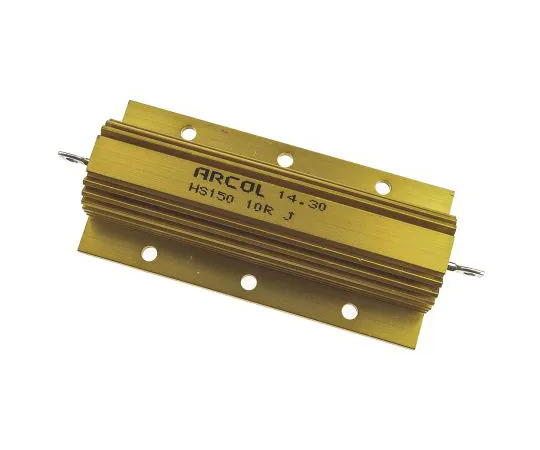

63-4758-80 Arcol HS150 Series Aluminium Ho***d Axial Wire Wound Panel Mount Resistor, 10Ω ±5% 150W HS150 10R J
Product Description
Product Model: 63-4758-80Product Brand: Arcol Features […]
Contact Us
Product Details
Product Model: 63-4758-80
Product Brand: Arcol
Features
- To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound. 150 W Aluminium ho***d wirewound power resistor, HS Series. 150 W Aluminium ho***d power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant. HS Series of high power, aluminium ho***d resistors offers an unequalled balance of pulse power capability versus volume. An advanced design optimises stability, linearity and reliability, making the HS Resistors suitable for many applications. Features. Compact size for Power rating Winding construction maximises High Pulse Capability. Applications. Braking resistor Inrush limiter Inverter/converter Snubber Balancing resistor
Spec
- Quantity:1piece
- Resistance : 10Ω
- Power Rating : 150W
- Series : HS150
- Package/Case : Aluminium Ho***d
- Tolerance : ±5%
- Technology : Wire Wound
- Termination Style : Axial
- Minimum Temperature Coefficient : -100ppm/°C
- Maximum Temperature Coefficient : +100ppm/°C
- Temperature Coefficient : ±100ppm/°C
- Overall Length : 121mm
- CODE No.:309-1267
