Analyzer, Testing Equipment

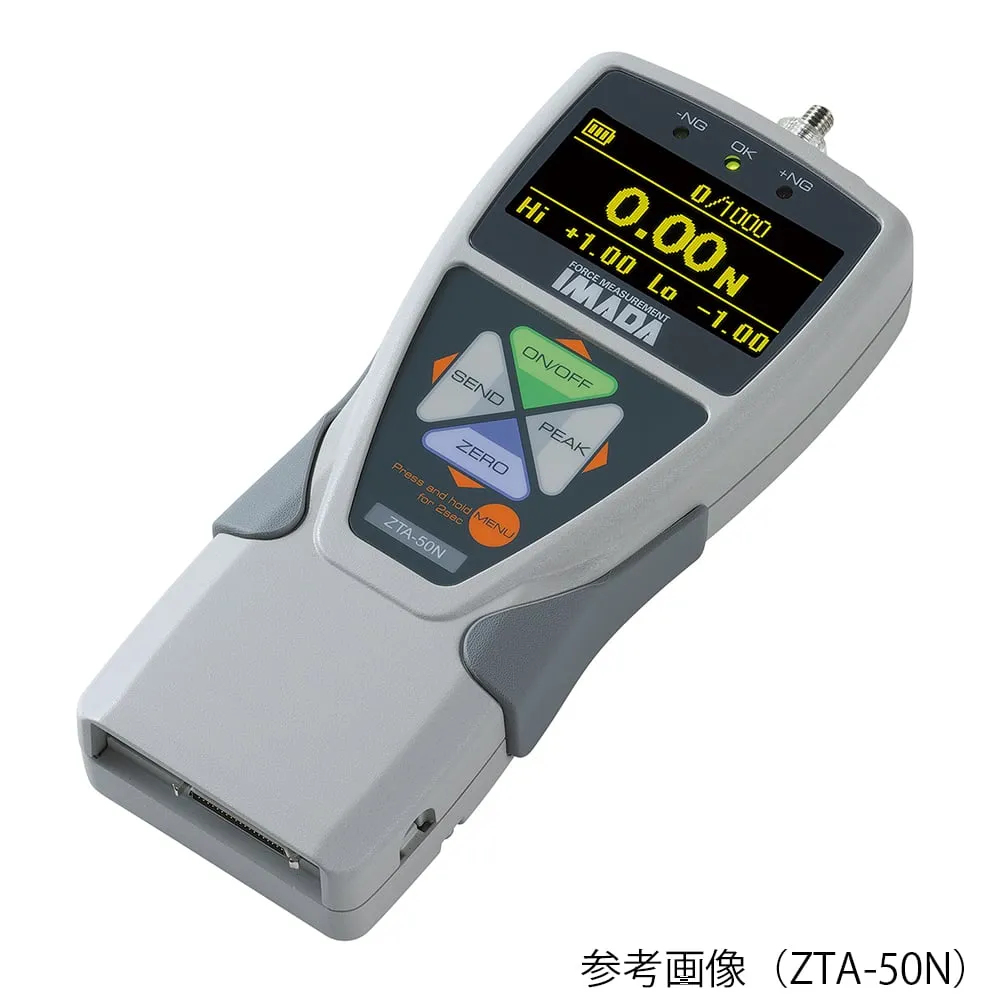

2-1431-41 Digital Force Gauge 20 N ZTA-20N
Product Description
Product Model: 2-1431-41Product Brand: IMADA CO., LTD. […]
Contact Us
Product Details
Product Model: 2-1431-41
Product Brand: IMADA CO., LTD.
Features
- High speed sampling (2000 Hz) and following sudden load changes provide high reproducibility for both peak values and continuous data.
- It has an OLED display, and you can display your favorite measurement parameters on the screen divided into three sections.
- A variety of data outputs, including USB and wireless and serial communications, are available, making it ***ful in a wide range of situations, from managing data on a personal computer to controlling external devices, such as stopping a machine at a specified load value.
- The included USB cable and software can be ***d to read internal memory data and obtain continuous data, and optional software sold separately can be ***d to draw load-time graphs in real time.
- The displacement can be measured using a displacement meter (sold separately).
- A USB thumb drive can be connected to store continuous data, making it convenient for measuring in places where a PC can't be carried.
- It can detect 1st and 2nd peaks.
Spec
- Maximum load (N): 20
- Minimum resolution: 0.01
- Number of pieces: 1
- Accuracy: +/- 0.2% FS +/- 1 digit
- Display: 4 signed digits
- Sampling: Up to 2000 times/second
- Output Functions: Common/USB (2.0, 3.0)/RS 232 C/2 VDC analog output (D/A)/Comparator 3 levels (-NG/OK/+ NG)/Overload warning, Sub-Comparator 2 levels (large/small decision output)/USB memory/Displacement
- Functions: Common/Multi-display (2-level up/down selective display), Peak hold (tension and compression), Internal memory (1000 data), Comparator (pass/fail judgment), Screen display inversion, Sign inversion, 0 clear timer, + NG alarm off timer (auto power off), Sensitivity setting, Time display, Setting lock, 1st 2nd peak detection, Peak load displacement detection, Displacement reset at specified load
- Size: 75 x 34 x 191 mm
- Power: Internal battery or 100 ~ 240 VAC (AC adapter included)
- Weight: approximately 490 g
- Accessories: Attachment 8 pieces (small hook, flat type, cone, A type, V type, connection rod, large hook and hook), USB memory adapter, USB cable, storage case, driver CD (with data capture software), AC adapter
