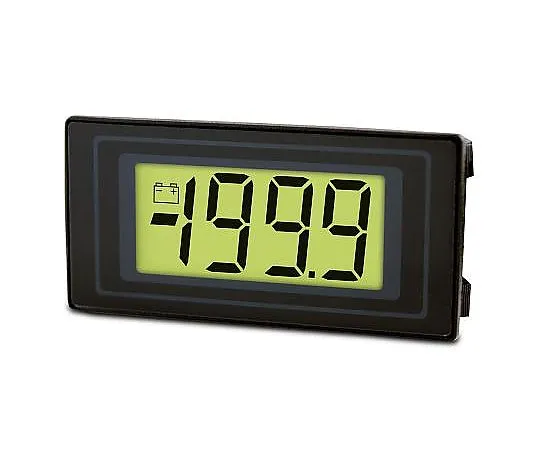

63-4758-37 Lascar Digital Voltmeter DC, LCD Display 3.5-Digits ±1 %, 45 x 22.2 mm DPM 125-BL
Product Description
Product Model: 63-4758-37Product Brand: Lascar Features […]
Contact Us
Product Details
Product Model: 63-4758-37
Product Brand: Lascar
Features
- snap-in bezel and window. 12.5mm, 3.5 Digit, Low Power. Low battery power indication Logic selectable decimal point Digital hold version (stock no. < 260-268') 260-268 LED backlit version (stock no. < 307-6375') 307-6375 Backlight voltage; 7.5V to 10V, backlight current; 60mA max. Extra large display in a miniature package Plugs directly into a 12-pin 0.1in pitch single in line socket Functions as ammeter when ***d with a 200mV digital current shunt Temperature stability zero drift 100 ppm/°C 7.5 - 14 Vdc operating voltage range
Spec
- Quantity：1piece
- Current Type : DC
- Number of Digits : 3.5
- Display Type : LCD
- Cutout Height : 22.2mm
- Cutout Width : 45mm
- Depth : 9mm
- Meter Accuracy : ±1 %
- Analogue Effect : Digits Only
- Minimum Temperature : 0°C
- Maximum Temperature : +50°C
- CODE No.:307-6375
