Features

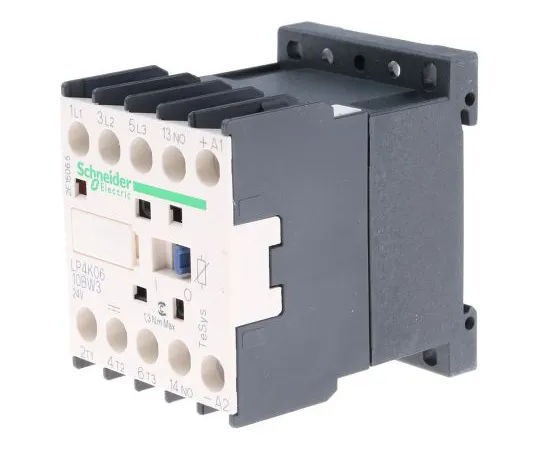

• Schneider Electric LP4K TeSys K Miniature Contactors. TeSys K Silent Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The LP4K range are low consumption DC operated contactors recomm***ed for *** in areas sensitive to noise and high interference mains supplies. The TeSys K contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience. Features and Benefits. Built-in auxiliary contacts for added switching capability. Screw connections: IP20 finger-safe terminals with both North American and International terminal markings. Can be panel mounted with screws or DIN Rail mounted. Coil with rectifier incorporated. Easily installed accessories. Instantaneous auxiliary contact. Flexible control circuit to suit a wide range of applications. High-fault short circuit current ratings provide the flexibility to select any component. What does the utilisation category AC1 and AC3 mean for the TeSys contactors?. Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions. AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of ***: resistive load, heating, distribution. AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of ***: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units. Are the TeSys K contactors suitable for applications in AC4 usage?. The LP4K series is suitable up to a maximum of 440 V ac in category AC4. Is the TeSys K range a double break pole type contactor?. Yes the TeSys K range ***s linear translation movement that provides double breaking of the poles.
