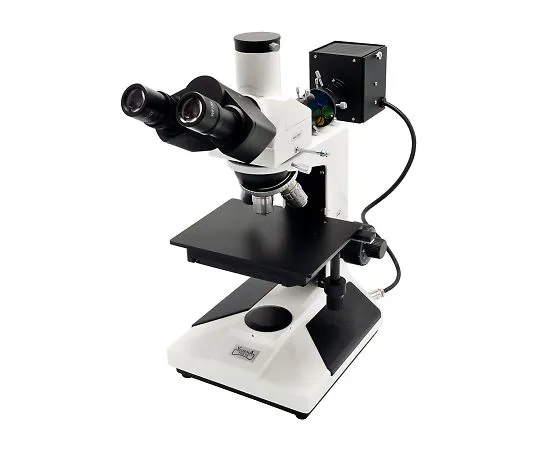

1-9214-21 Metal reflection microscope triad TMR-1
Product Description
Product Model: 1-9214-21Product Brand: Yashima Optical […]
Contact Us
Product Details
Product Model: 1-9214-21
Product Brand: Yashima Optical Co., Ltd.
Features
- It is suitable for surface observation of impermeable materials such as metals.
- It ***s a plan-chromatic objective lens that corrects field curvature aberration.
- 1x camera adapter to convert to C mount is included.
Spec
- Specifications: Three Eyes
- Overall ratio: 50 ~ 600 x
- Number of pieces: 1
- Body size: 219 x 433 x 417 mm
- Stage size: 140 x 160 mm
- Power supply: 100 ~ 240 VAC 50/60 Hz
- Light source: White LED (continuously dimmed)
- Eyepiece: Wide Field WF 10 x 2
- Objective: PL 5 x, PL 10 x, PL 40 x, PL 60 x
- Focus control: 1-axis coarse fine motion handle with stopper
- Equipped with high-brightness LED lighting
- Simple polarizers: Polarizers and analyzers built into lighting equipment
- Weight: 9 kg
- Comes with: Main unit, power cable, 1x C-mount camera adapter, dust cover
