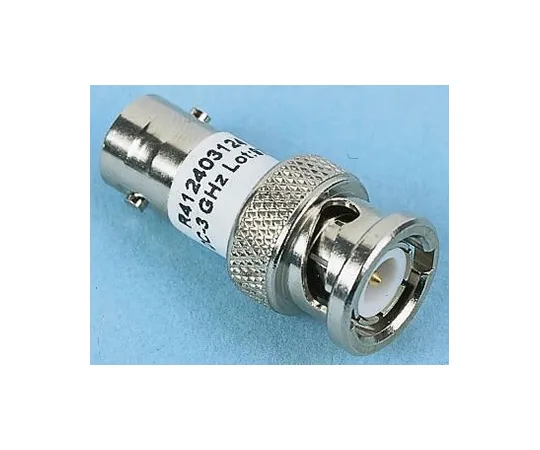

63-4756-41 50Ω RF Attenuator Straight BNC Connector BNC Plug to BNC Socket 10dB, Operating Frequency 3GHz R412410124
Product Description
Product Model: 63-4756-41Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4756-41
Product Brand: Radiall
Features
- Radiall 50 Ohm RF Coaxial BNC Attenuators. 50 ohm BNC plug to socket RF coaxial attenuators with a PTFE dielectric, nickel plated brass body and gold plated centre contact. These 50 ohm BNC plug to socket RF coaxial attenuators have an operating frequency range of 3 GHz and a 1W average power rating at 25°C.
Spec
- Quantity：1piece
- Interface Type : BNC Plug to BNC Socket
- Attenuation : 10dB
- Body Orientation : Straight
- Impedance : 50Ω
- Operating Frequency : 3GHz
- Contact Plating : Gold over Nickel
- Contact Material : Beryllium Copper, Brass
- Connector Type : BNC
- G***er A : Female
- G***er B : Male
- CODE No.:296-8037
