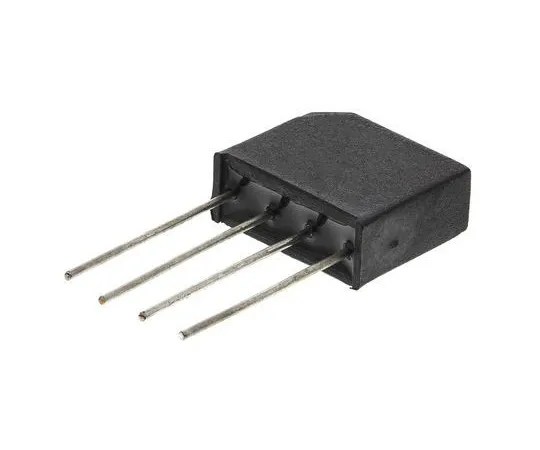

63-4756-37 Vishay VS-2KBB20R, Bridge Rectifier, 1.9A 200V, 4-Pin D 37 VS-2KBB20R
Product Description
Product Model: 63-4756-37Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-4756-37
Product Brand: Vishay
Features
- Standard pin configuration is: – ∼ + ∼ Alternative pin configuration (part no. suffix R) is: – ∼ ∼ +. SIL PCB Mounting, 2KBB Series, Vishay Semiconductor. 2KBB series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor. Suitable for Printed Circuit Board (PCB) through hole mounting Leads on standard 2.54mm (0.1") grid Compact construction High surge current capability Equivalent to standard DIN parts
Spec
- Quantity：1bag(5pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 1.9A
- Peak Reverse Repetitive Voltage : 200V
- Mounting Type : Through Hole
- Package Type : D 37
- Pin Count : 4
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 52A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -40 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 10µA
- Length : 17.5mm
- Width : 6.5mm
- CODE No.:296-5448
