63-4756-07 Radiall Straight 50Ω Cable Mount TNC Connector, RG59, RG62 R143012000
Product Description
Product Model: 63-4756-07Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4756-07
Product Brand: Radiall
Features

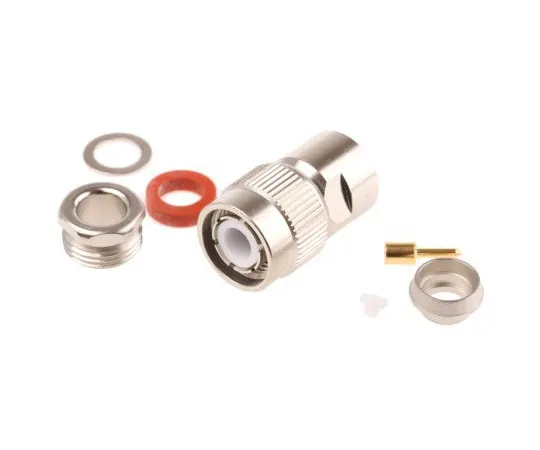

- Radiall 50 Ohm TNC RF Coaxial Straight Cable Plug, Clamp Termination. 50 Ohm TNC RF coaxial straight cable plugs with a clamp style coaxial termination. These 50 Ohm TNC straight cable plugs have a PTE dielectric, nickel plated brass body and gold plated centre contact. The RF coaxial cable types that these 50 Ohm cable plugs can be ***d with are as follows: Stock number ; 295-8226 295-8226 : RG-58, RG-141, RG-142, RG-142 FX, RG-223, RG-400, KX 15, KX 23 Stock number ; 295-8232 295-8232 : RG-213, RG-214, RG-225, KX 4, KX 13 Stock number ; 295-8248 295-8248 : RG-59, RG-62, KX 6A
Spec
- Quantity：1piece
- G***er : Male
- Body Orientation : Straight
- Mounting Type : Cable Mount
- Body Plating : Nickel
- Cable Type : RG59, RG62
- Impedance : 50Ω
- Minimum Operating Temperature : -65 °C
- Maximum Operating Temperature : +165 °C
- Contact Plating : Gold over Nickel
- Contact Material : Brass
- CODE No.:295-8248
