3-634-01-57 Thermography with Chinese Calibration Certificate SGT
toner

3-634-01-57 Thermography with Chinese Calibration Certificate SGT

model: 3-634-01-57
brand: AS ONE Corporation
category: toner

Product Description

Product Model: 3-634-01-57Product Brand: AS ONE Corpora […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 3-634-01-57
Product Brand: AS ONE Corporation

Features

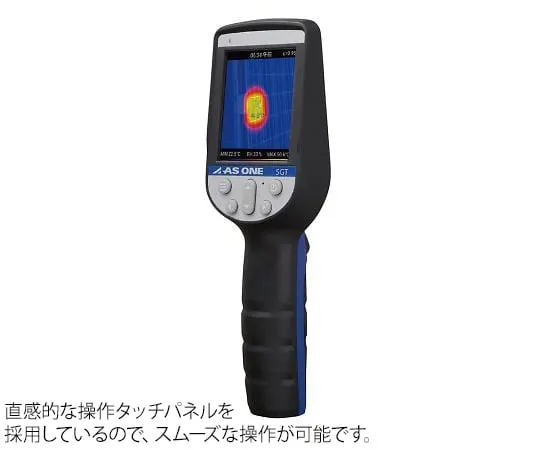

  • Since it ***s a touch panel, you can select a menu and check the temperature smoothly.
  • It has a canton superposition function of thermal image and visible image, so it is easy to understand where the temperature is actually rising.
  • The built-in humidity sensor can measure not only object temperature but also environmental humidity, making it convenient for understanding the measurement environment.
  • Since the temperature information of every individual pixel on the screen is stored, the temperature of the touch point can be displayed.
  • It has an auto power off function that reduces battery drain.
  • Temperature information is also saved in the saved still image.
  • High performance thermography that can measure environmental humidity
  • New function added firmware makes it even more convenient!
  • The function to check the detection position of the maximum and minimum temperature on the screen is added.
  • Please refer to the information on the left.
  • Click
    here

Spec

  • Measuring range (temperature/humidity): -20 to + 380 degrees C/0 ~ 80% RH
  • Resolution (temperature/humidity): 0.1 degrees C/1%
  • Temperature measurement accuracy: +/- 2% rdg +/- 2 degrees C, whichever is greater
  • Accuracy of humidity measurement: +/- 5% RH (25 degrees C, 30 ~ 70% RH)
  • Resolution: 32 x 32 (1024) pixels
  • Measuring viewing angle: 33 degrees x 33 degrees
  • Minimum focal length: 0.1 m
  • Display: 2.8 inch color LCD, touch panel
  • Memory: Internal/External (up to 64 GB microSD card/sold separately)
  • Image format: Still image/BMP/JPEG, Movie/MP4
  • With Auto Power Off (30 seconds to 30 minutes 30 seconds/variable)
  • Power supply: 3.7 V rechargeable lithium battery (charged via USB port)
  • Size: Approx. 215 x 48 x 66 mm
  • Weight: approximately 220 g
  • *The standard calibration points are three points: low temperature, medium temperature and high temperature. If you would like additional points, please contact us separately.
