63-4755-87 Radiall Straight 50Ω Flange Mount Bulkhead Fitting BNC Connector, jack, Nickel, Clamp Termination, RG179, RG187, RG188, R141254000W
Product Description
Product Model: 63-4755-87Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4755-87
Product Brand: Radiall
Features

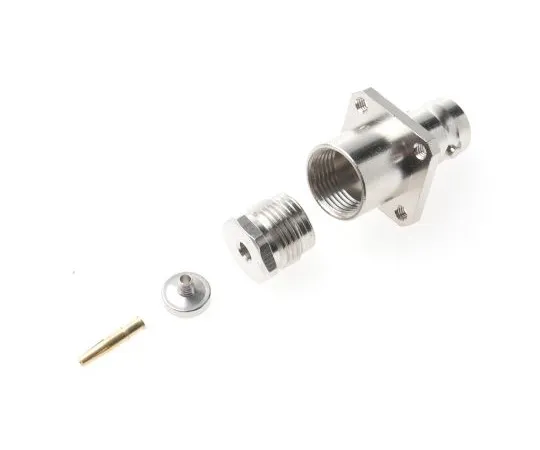

- Straight female BNC sockets with square flange. Straight female BNC sockets with flange for connection with cable gland. These sockets mount onto panels using four screws (not provided).
Spec
- Quantity：1piece
- G***er : Female
- Mounting Type : Flange Mount
- Impedance : 50Ω
- Termination Method : Clamp
- Body Orientation : Straight
- Cable Type : RG179, RG187, RG188, RG316
- Bulkhead : Yes
- Operating Frequency : 0 → 4GHz
- Body Plating : Nickel
- Maximum Operating Temperature : +165°C
- Contact Material : Beryllium Copper
- Contact Plating : Gold
- CODE No.:295-7576
