63-4755-74 Radiall 50Ω Straight Panel Mount N Type Connector, jack, Solder Termination, 0 → 11GHz R161404000W
Product Description
Product Model: 63-4755-74Product Brand: Radiall Feature […]
Contact Us
Product Details
Product Model: 63-4755-74
Product Brand: Radiall
Features

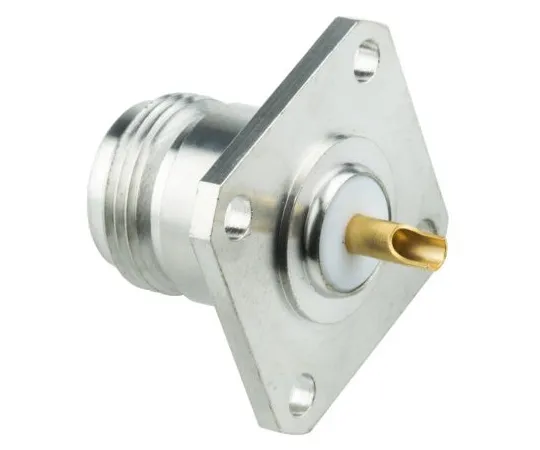

- Radiall 50 Ohm N Series RF Coaxial Flanged Jack Receptacle Connector. 50 Ohm N series RF coaxial jack receptacle connector with screw-on mating, a square flange with 4 x 3.3mm dia holes and solder pot contact termination. This 50 Ohm N series RF coax panel mount female jack connector has a nickel plated body, gold plated centre contact and PTFE dielectric.
Spec
- Quantity：1piece
- G***er : Female
- Mounting Type : Panel Mount
- Termination Method : Solder
- Body Orientation : Straight
- Impedance : 50Ω
- Operating Frequency : 0 → 11GHz
- Minimum Operating Temperature : -55 °C
- Body Plating : Bronze
- Contact Plating : Gold over Nickel
- Contact Material : Beryllium Copper
- CODE No.:295-6898
