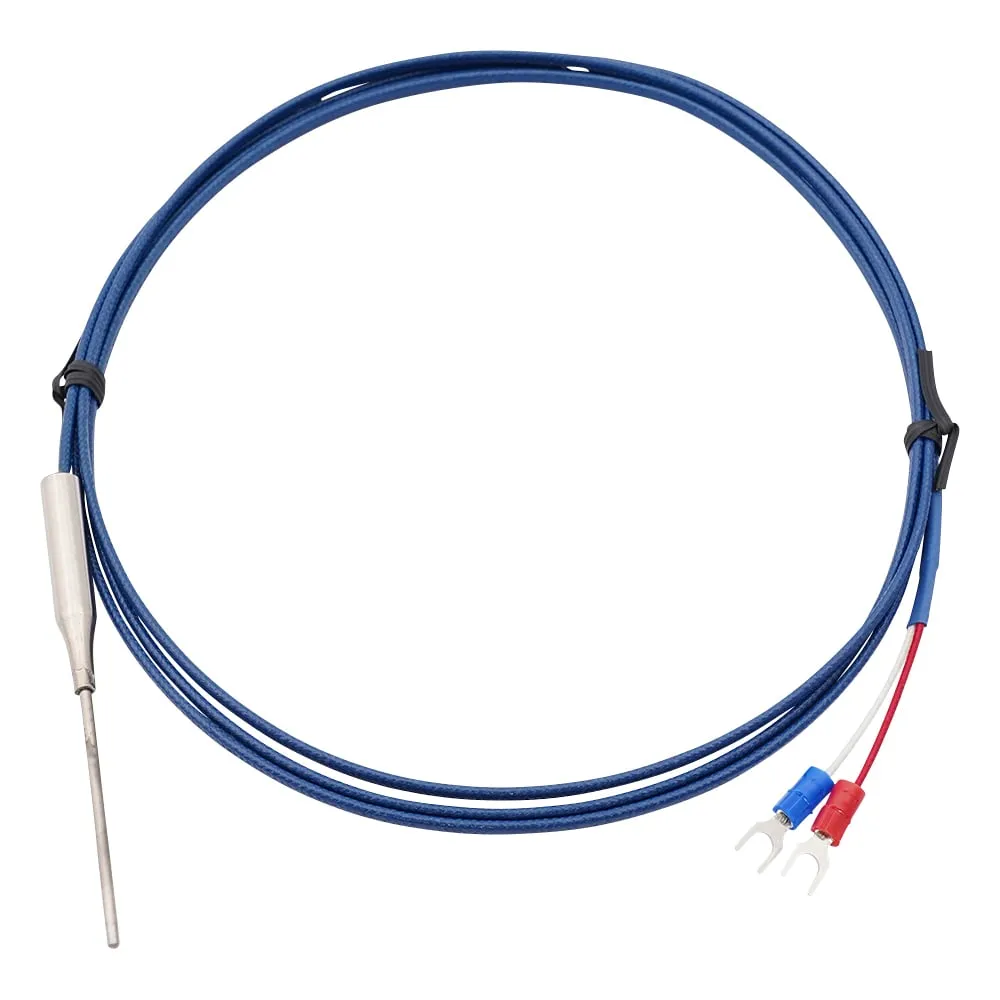

3-1668-01-57 K Thermocouple (M4Y terminal type) with Chinese Calibration Certificate KTO-2350
Product Description
Product Model: 3-1668-01-57Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 3-1668-01-57
Product Brand: AS ONE Corporation
Features
- We offer a wide range of products.
Spec
- Temperature range (deg. C): -50 to + 700
- Sheath diameter (mm): phi 2.3
- Sheath length (mm): 50
- Materials: sheath/stainless steel (SUS 316), sleeve/stainless steel (SUS 304), lead wire coating/glass wool
- Lead wire length: 2 m
- Lead wire terminal: M4Y terminal
- M4Y terminal type
- *Use in an environment where the temperature at the base of the sheath part is below 100 degrees Celsius.
- The standard calibration point is 25 degrees C/80 degrees C. If you would like additional points, please contact us.
