Features

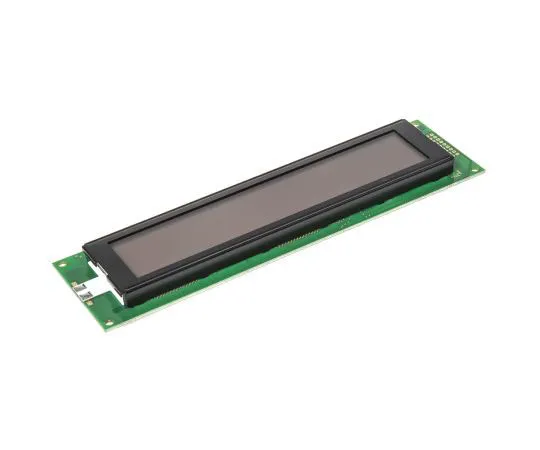

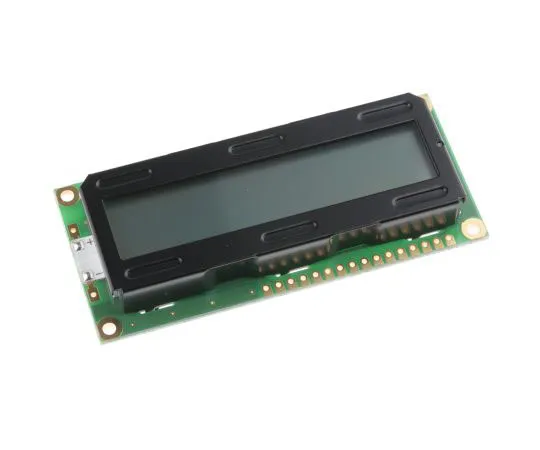

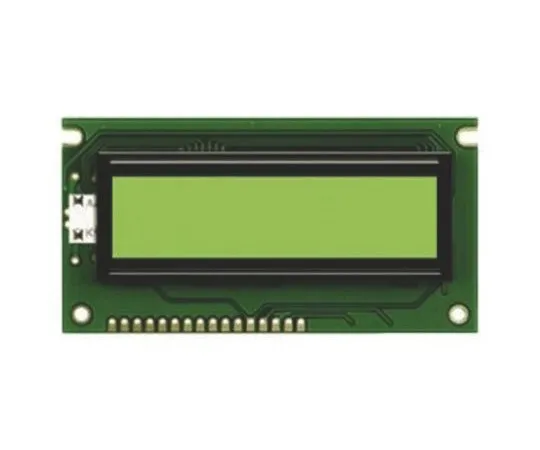

• Observe ANTISTATIC precautions when storing or handling these modules. Reverse polarity connection to the module will ca*** irreparable damage. Powertip Transflective backlit LCD STN. Transflective (dark character on a light background) alphanumeric STN and TN dot matrix modules with integral green LED backlight and LCD display drivers. 5 ;font face="symbol">´ ;/font>7 dot matrix format (except 16 ;font face="symbol">´ ;/font>1, which ***s 5 ;font face="symbol">´ ;/font>10, and 20 ;font face="symbol">´ ;/font>4 and 40 ;font face="symbol">´ ;/font>4, which *** 5 ;font face="symbol">´ ;/font>8) with cursor 160 characters and symbols Wide viewing angle Single +5V supply CMOS controller and driver Parallel interface to 4 or 8-bit microprocessor Display commands: clear, shift, on/off, read, write Cursor commands: home, address set Operating temperature range 0°C to 50°C
