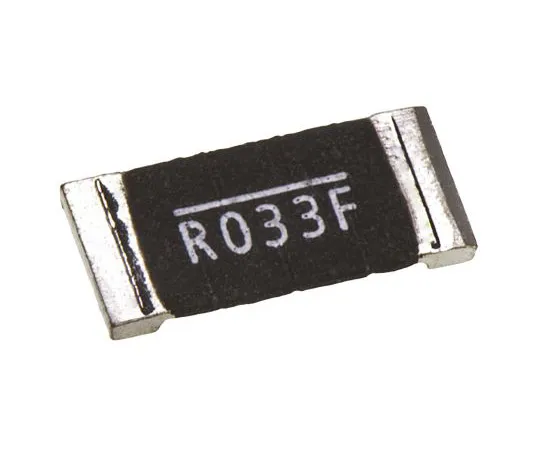

63-4755-09 33mΩ 2512 Metal Strip Current Sensing Surface Mount Fixed Resistor ±1% 1W - TL3AR033F TL3AR033F
model:
63-4755-09
brand:
TE Connectivity
Product Description
Product Model: 63-4755-09Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-4755-09
Product Brand: TE Connectivity
Features
- TL3A Series SMD Current Sense Resistors. 2512 format Up to 1W at 70°C Low ohmic shunt resistor which acts as a current sensor Wide value range: R001 to R082. TE Connectivity TL3A series high power, low ohmic metal chip shunt resistors for current sensing applications. The TL3A series have a unique metal resistive element and barrier layers beneath the solder to prolong terminal life. TL3A s are particularly suited to applications in the automotive industry for sensing in electric multiple units ( EMU s ).
Spec
- Quantity：1bag(5pieces)
- Resistance : 33mΩ
- Technology : Metal Strip
- Package/Case : 2512 (6432M)
- Tolerance : ±1%
- Power Rating : 1W
- Temperature Coefficient : ±75ppm/°C
- Series : TLA3A
- Minimum Operating Temperature : -65°C
- Maximum Operating Temperature : +170°C
- CODE No.:294-5618
