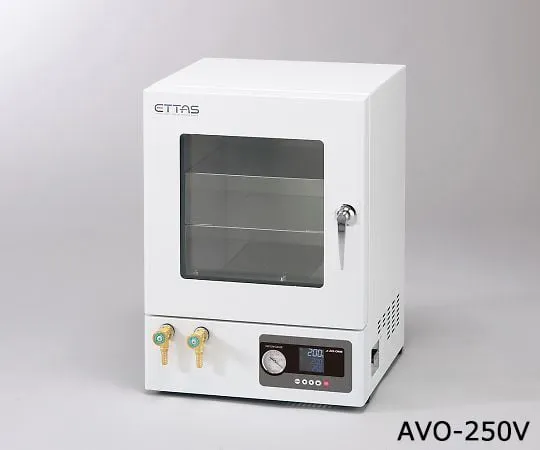

1-2186-12-28 ETTAS Vacuum dryer (V series) with Pre-shipment Validation AVO-250V
Product Description
Product Model: 1-2186-12-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-2186-12-28
Product Brand: AS ONE Corporation
Features
- Standard model of vacuum dryer.
- For easy piping and operation, a valve for connecting a vacuum pump and a vacuum gauge are placed on the front operation panel.
- Uses a double door consisting of a tempered glass door and a protective polycarbonate door.
- Uses heat-resistant packing for excellent durability and airtightness.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- A standard model that can be digitally set for both temperature control and excessive rise prevention.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature point: one temperature point, vacuum degree
- Storage capacity (L): 15
- Additional functions: Timer function (ON/OFF/ON/OFF Timer/SV start)
- Sensors: K thermocouples x 2 (1 each for temperature control and excessive rise prevention)
- Safety devices: overrise prevention function (digital setting type), self-diagnosis function (heater disconnect detection/sensor malfunction detection), overcurrent breaker
- Material
- Exterior: Steel Baked Paint
- Interior: SUS 304
- Shelf: Aluminum
- Valves, Pipes and Fittings: Brass (C -3771, C -3604)
- Vacuum gauge: brass (C 2680 TW, C 3604 BD)
- Door Packing: Silicone Rubber
- Observation Window: Tempered Glass (12 mm Thickness)/Polycarbonate Protective Plate
- External dimensions (mm): 393 x 426 x 559
- Interior dimensions (mm): 250 x 250 x 250
- Heater capacity: 800 W
- Power supply: 100 VAC 50/60 Hz 8 A
- Power cord length: 2.5 m
- Weight: approximately 33 kg
- Accessories: 2 shelf boards
- Heating method: Can body heating method
- Temperature setting range: 40 ~ 220 degrees C
- Operating vacuum range: 0.1 ~ 101 kPa
- Control method: PID control and SSR output
- Valve diameter: 13 mm in outside diameter
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
