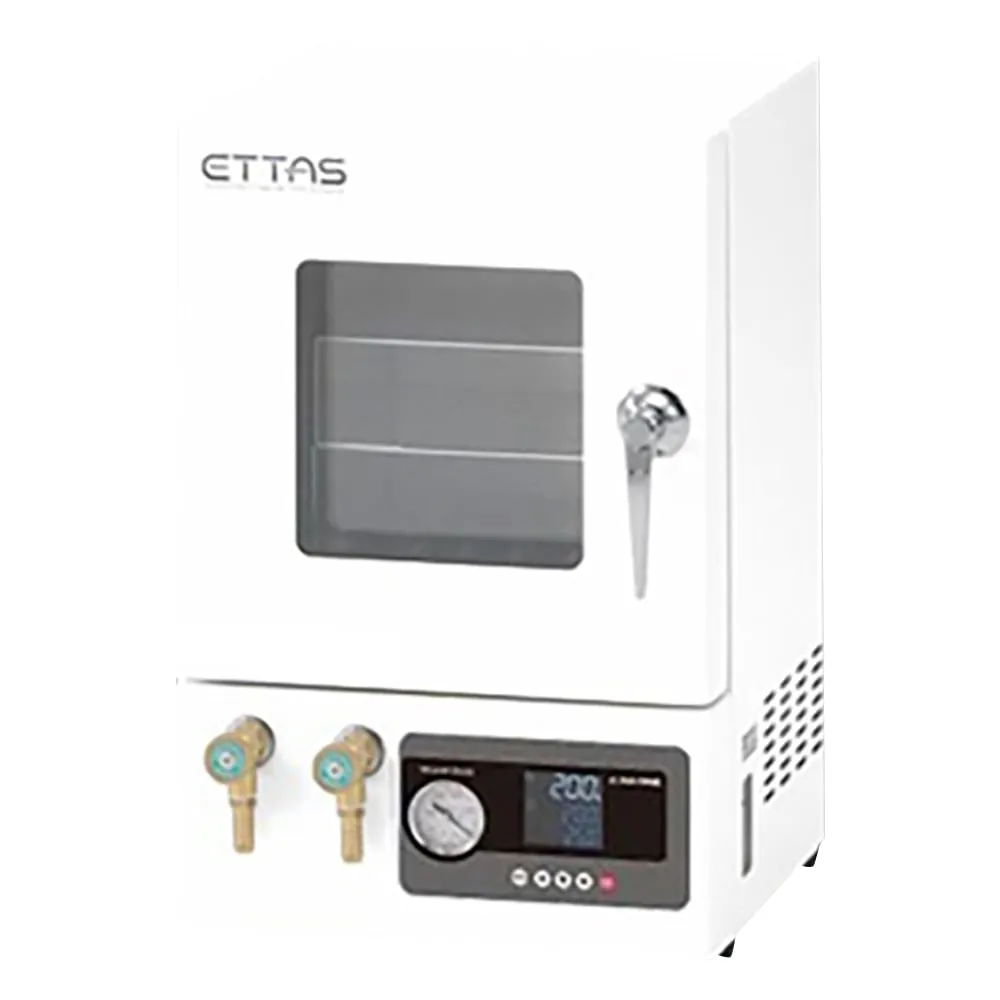

1-2186-11 Vacuum Dryer (V Series) AVO-200V
Product Description
Product Model: 1-2186-11Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-2186-11
Product Brand: AS ONE Corporation
Features
- Standard model of vacuum dryer.
- For easy piping and operation, a valve for connecting a vacuum pump and a vacuum gauge are placed on the front operation panel.
- Uses a double door consisting of a tempered glass door and a protective polycarbonate door.
- Uses heat-resistant packing for excellent durability and airtightness.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- A standard model that can be digitally set for both temperature control and excessive rise prevention.
Spec
- Inner capacity (L): 8
- Additional function: Timer function (ON/OFF/ON/OFF timer and SV start)
- Sensor: K class thermocouple x 2 pieces (1 each for temperature control and overheating prevention)
- Safety device: Over-rise prevention function (digital setting type), self-diagnosis function (Heater disconnection detection and sensor error detection), overcurrent breaker
- material
- *Exterior: Steel baked paint
- *Interior: SUS304
- *shelf board: Aluminium
- *Valves, Piping, Fittings: brass (C -3771, C -3604)
- *Vacuum gauge: brass (C 2680 TW, C 3604 BD)
- *Door packing: silicone rubber
- *Observation window: tempered glass (Thickness 12mm), protective plate made of polycarbonate
- Outer dimensions (mm): 343 x 376 x 509
- Inner dimensions (mm): 200 x 200 x 200
- Heater capacity: 800W
- Power supply: AC100V 50/60Hz 8A
- Power cord length: 2.5 m
- Weight: about 25kg
- Accessories: shelf board x 2 pieces
- Heating system: Can body heating system
- Temperature settings range: 40 to: 220 °C
- Vacuum range: 0.1 to 101kPa
- Control method: PID control and SSR output
- Valve diameter: outer diameter φ13 mm
