Spec

• Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
• Validate (FAT) before shipping.
• After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
• App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
• *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
• Temperature point: 1 point of 37 degrees Celsius

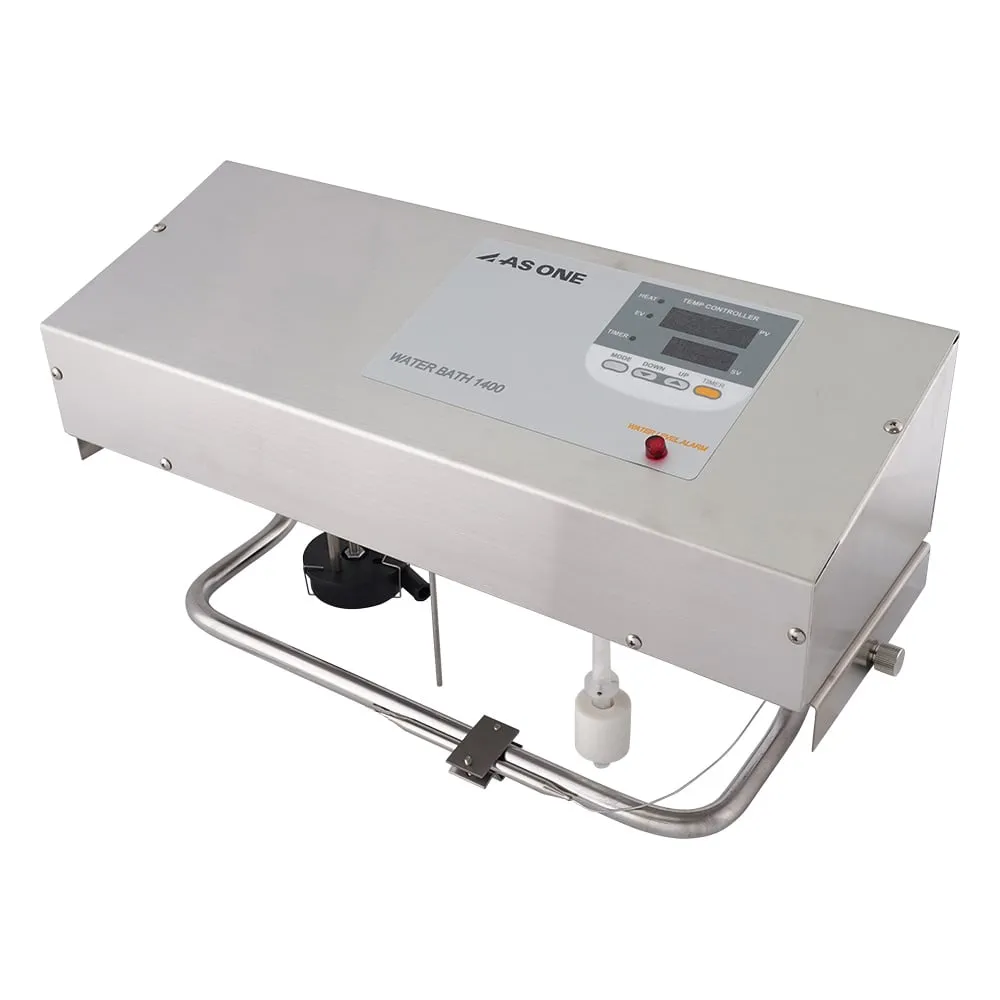

• Body
• External dimensions (mm): 408 x 136 x 205
• Temperature setting range: room temperature + 5 ~ 60 degrees C
• Temperature control accuracy: +/- 1 degrees C (performance of the controller alone)
• Temperature control method: Digital PID control
• Heater capacity: 1400 W
• With Timer function (ON Timer, OFF Timer, SV start)
• Material: Body/SUS 430, Water Tank/PP, Lid/Polycarbonate
• Safety device: Indep***ent temperature overheating protection, float type empty heating protection, motor with temperature f***
• Power supply: 100 VAC 50/60 Hz 14 A
• Power cord length: 2 m (3P plug)
• Body weight: About 3.5 kg
• *The body does not come with a water tank.
• *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
