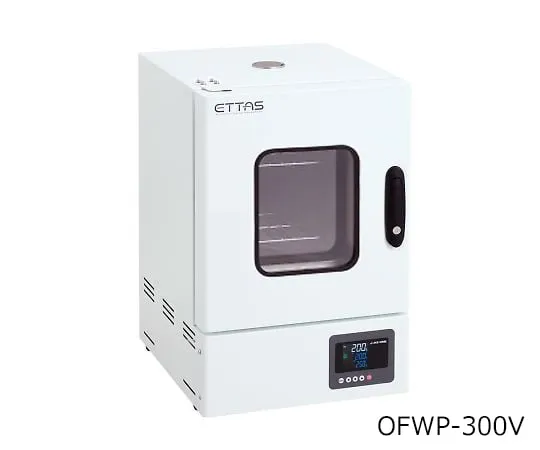

1-2126-31-28 Constant Temperature Dryer (program specification, forced convection system) with Window, Left Door, with Pre-shipment Validation OFWP-300V
Product Description
Product Model: 1-2126-31-28Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-2126-31-28
Product Brand: AS ONE Corporation
Features
- Forced Convection
- Selectable 3 Sizes
- Basic Model Changed
- Digital Safety Equipment Standard
- Brilliant Large LCD Screen
- Uses a highly visible color LCD display for improved operability.
- In addition to the PV/SV two-stage display that makes it easy to check the measured values and the set values, the over-temperature rise prevention set temperature display is adopted.
- Four timer functions (ON/OFF/ON/OFF/SV start) are provided as standard equipment, and you can select from four types according to the quantity and size of the sample.
- The temperature control ***s PID control, which enables stable temperature control with high accuracy.
Spec
- Validated products are Azuwan original services that conduct FAT (Factory Acceptance Test) at Azuwan before shipping.
- Validate (FAT) before shipping.
- After receiving the order, a FAT instruction form (plan) is sent to the ***r, and after the signature is returned, the FAT is performed.
- App***ix: FAT report/Calibration Certificate of ***d measuring instrument copied
- *I am attaching Azwan's original FAT instruction manual (see the sample at the bottom left of the Screen).
- Temperature points: 9 points at 270 degrees Celsius
- Interior dimensions (mm): 300 x 327 x 300
- Door: Left
- Temperature control range: room temperature + 20 ~ 270 degrees C
- Maximum temperature reach time: approximately 20 minutes
- Temperature distribution (JTM K05): +/- 3 degrees C (at 270 degrees C)
- Temperature variation (JIS): +/- 1 degrees C (at 270 degrees C)
- Temperature Gradient (JIS): 10 degrees C (at 270 degrees C)
- Temperature control method: PID control, SSR output
- Additional function: Program specification - > Program function of up to 8 steps x 4 patterns
- Safety device: Digital setting type overrise prevention function/Overcurrent breaker/burnout mechanism (Heater OFF when sensor is disconnected)
- Heater capacity: 1100 W
- Temperature Sensor: K thermocouples x 2 (1 each for controlling temperature and preventing excessive rise)
- Shelf Pitch/Number of Racks: 35 mm Pitch/6 Racks
- Exterior/Interior: Steel powder coating/SUS 304 (some SUS 443 J 1)
- Vent: 32 mm in diameter x 1
- External dimensions: 400 x 447 x 610 mm
- Storage capacity: approximately 25 L
- Weight: approximately 25 kg
- Power Supply: 100 VAC 50/60 Hz Cord Length: 2.4 m (3 P Plug)
- Current rating: 11.5 A
- Shelf load capacity: 15 kg
- Accessories: 2 shelf boards, 2 shelf rails
- *Do not put combustible materials in the cabinet.
- *If you would like to request a local IQOQ, please contact us separately. We need your installation address for the estimate.
